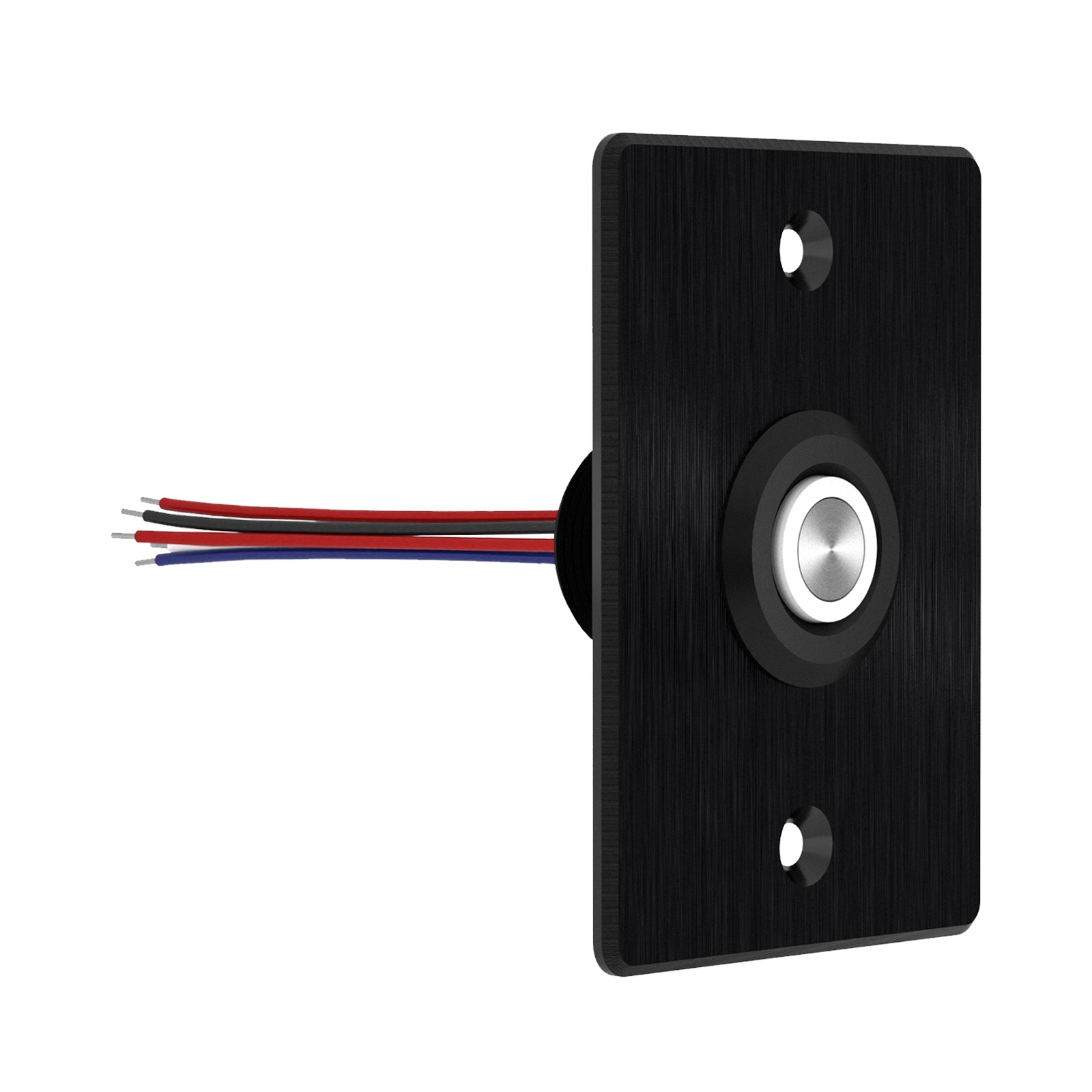

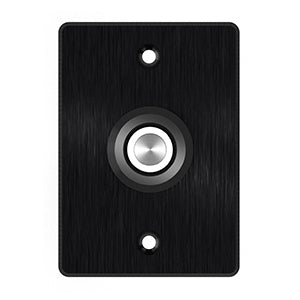

12V PWM Dual-mode Dimmer Switch Push Button Dimmer Full Aluminum, DC12V 6A (Note:Works with acegoo 12V Bi-color Puck Lights)

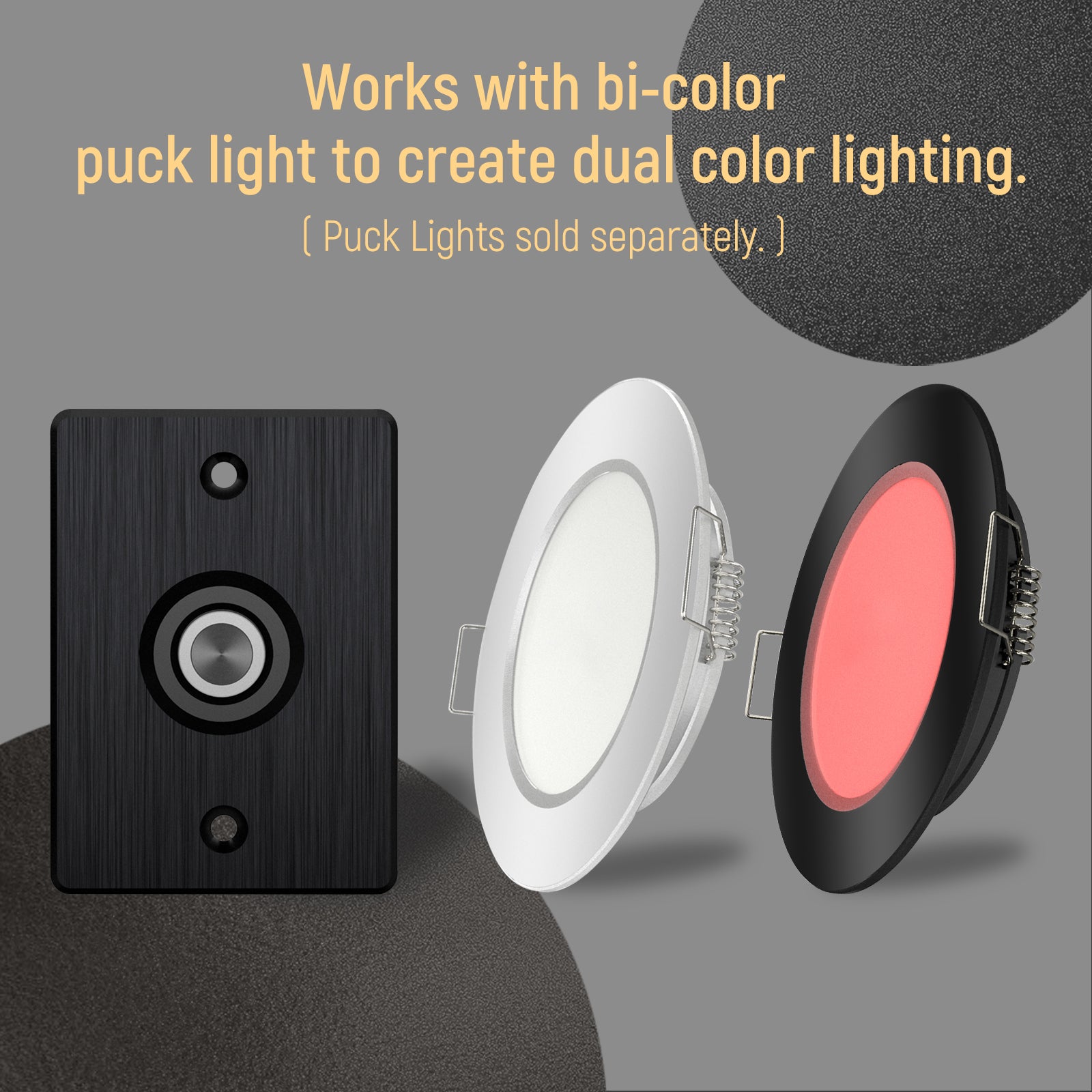

Compatible with acegoo Bi-color Light - It works with acegoo  bi-color light fixture to create dimmable white light and red nightlight dual color lighting mode

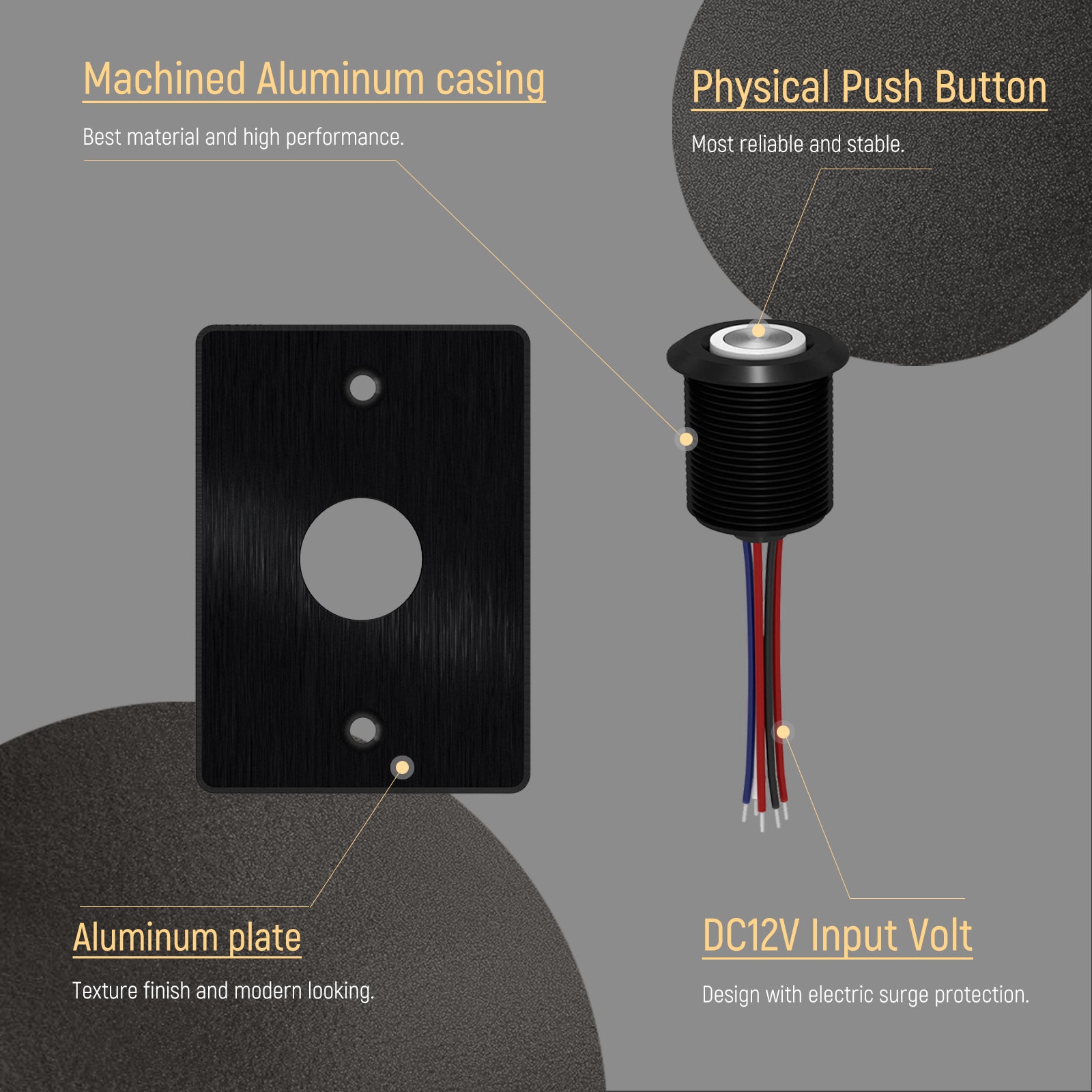

Full Aluminum Material, Solid & Durable - This push button light dimmer is manufactured from high performance full aluminum material and water-proof IP64 rated

Reliable Physical Push Button - This is not capacitive touch switch, but mechanical push button. It is intuitive to operate, no malfunction, very reliable and stable

Stepless Dimming & Brightness Memory - 8% - 100% stepless smooth dimming range, light brightness will keep the same as last time setting when turn on next time

Flush Mounting, Clean Look - Drill a 3/4" hole, dimmer was recessed into mounting surface and secured sturdy by screw nut in back, clean and modern looking

Widely used in RV, camper trailer, boat, truck, caravan, etc. interior lighting or anywhere 12 volt DC power is present.
Specification:
Enclosure Material: Full aluminum
Front Plate: Full aluminum
Operation Voltage: DC12V or DC24V
Output Current: Max 6 Amps
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Saves the last brightness setting

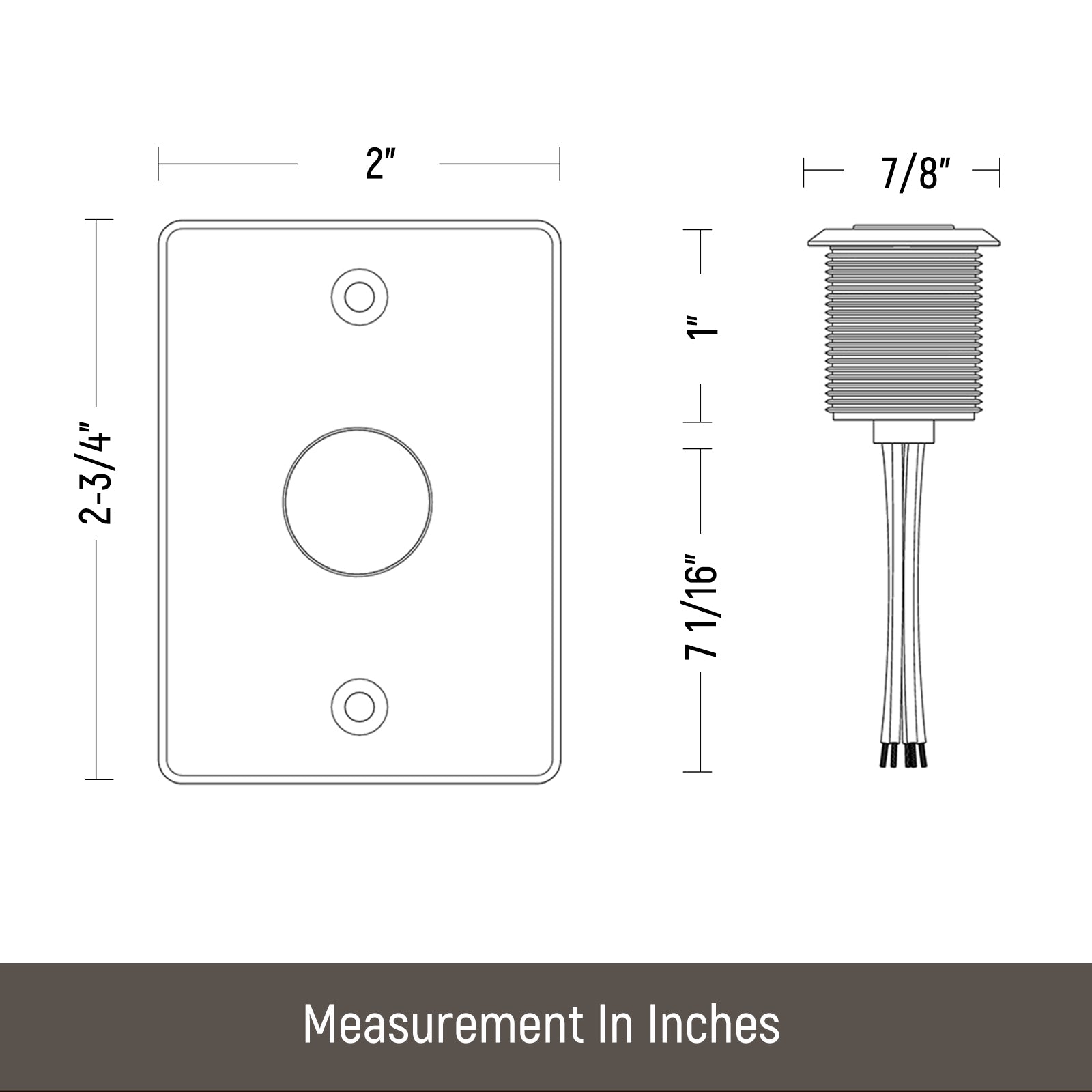

Dimmer Size: 7/8” x 1” (22mm x 25 mm)
Front Plate Size: 2-3/4” x 2” (70mm x 50 mm)
Installation Depth: 1” (25mm)
Drill Hole Diameter: 19mm
IP rating: IP 64
Application: Indoor use
Easy to Use:
1. Short press to turn on light.
2. Press and hold switch to adjust brightness smoothly.
3. Short press again to turn off light.
4. Directly longer press to active bi-color red nightlight (If it was connected to bi-color light fixture).
This dimmer has brightness memory function, it will automatically keep the same brightness as last time when turn on light next time.
NOTES:
Some LED lights are not dimmable. Prior to installation, please make sure the LED light is dimmable, otherwise dimmer is not applicable.
