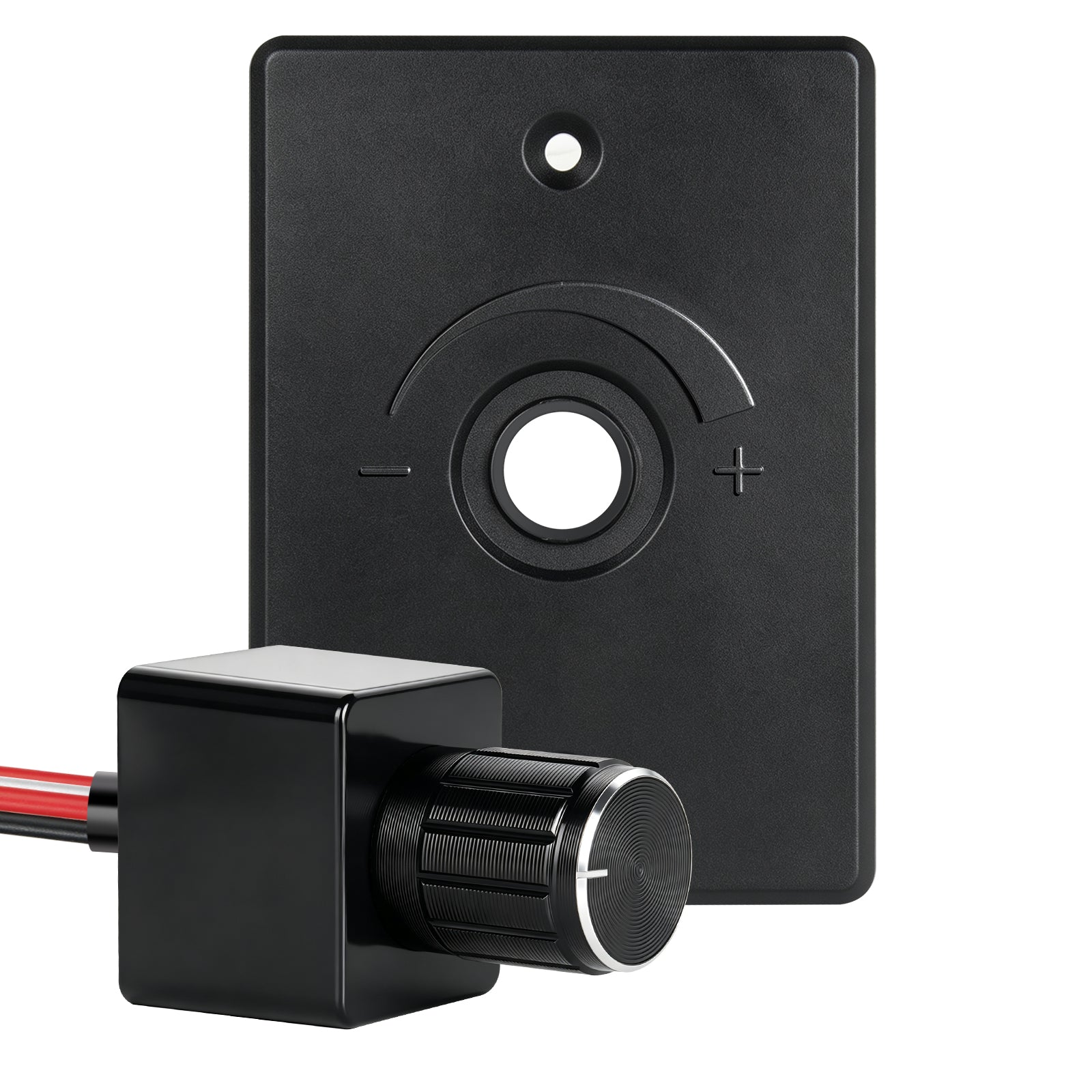

For 12V DC Circuit - Rated 6A, compatible with LED lighting, incandescent, halogen, Single Color Strip Lights or anywhere 12 volt DC power is present

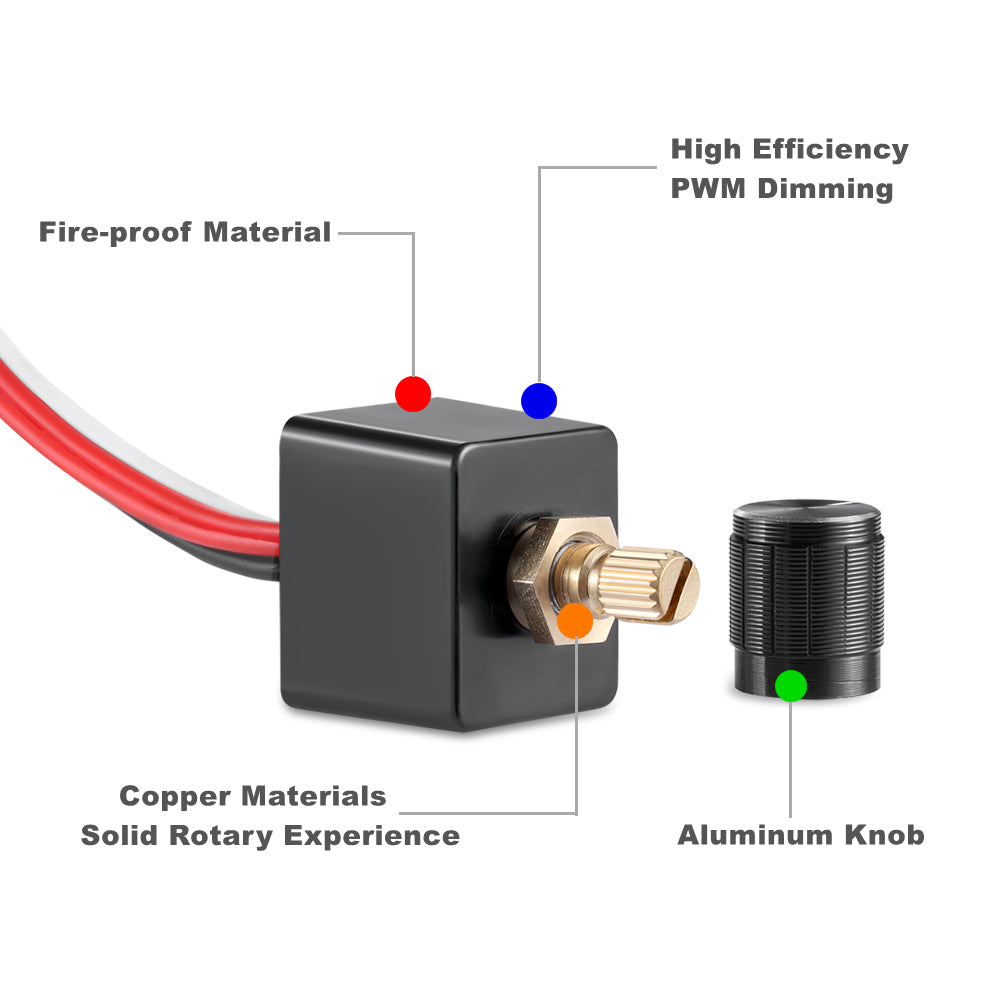

PWM Dimming - Pulse width modulation dimming control, reduce heat and raise energy efficiency, no buzz and flicker-free dimming

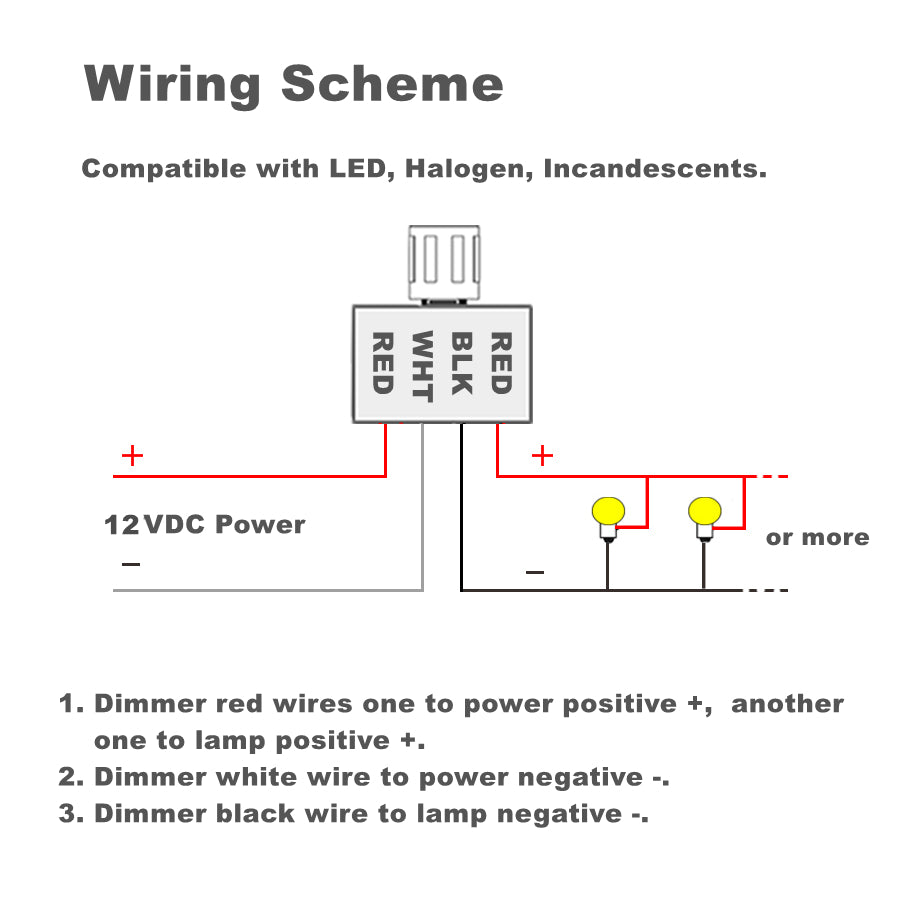

Easy to Connect - Clear 4 wires configuration, 2 power input wires, positive and negative, 2 output wires to lamp positive and negative

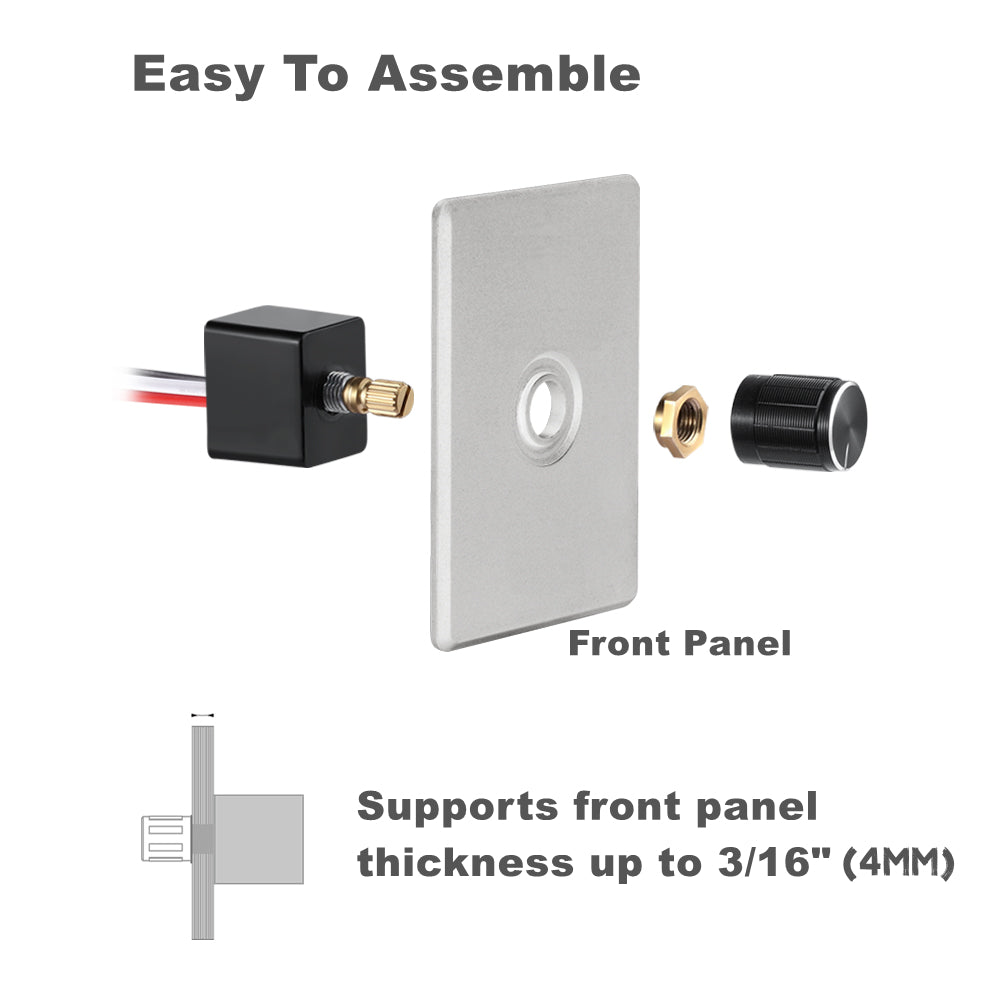

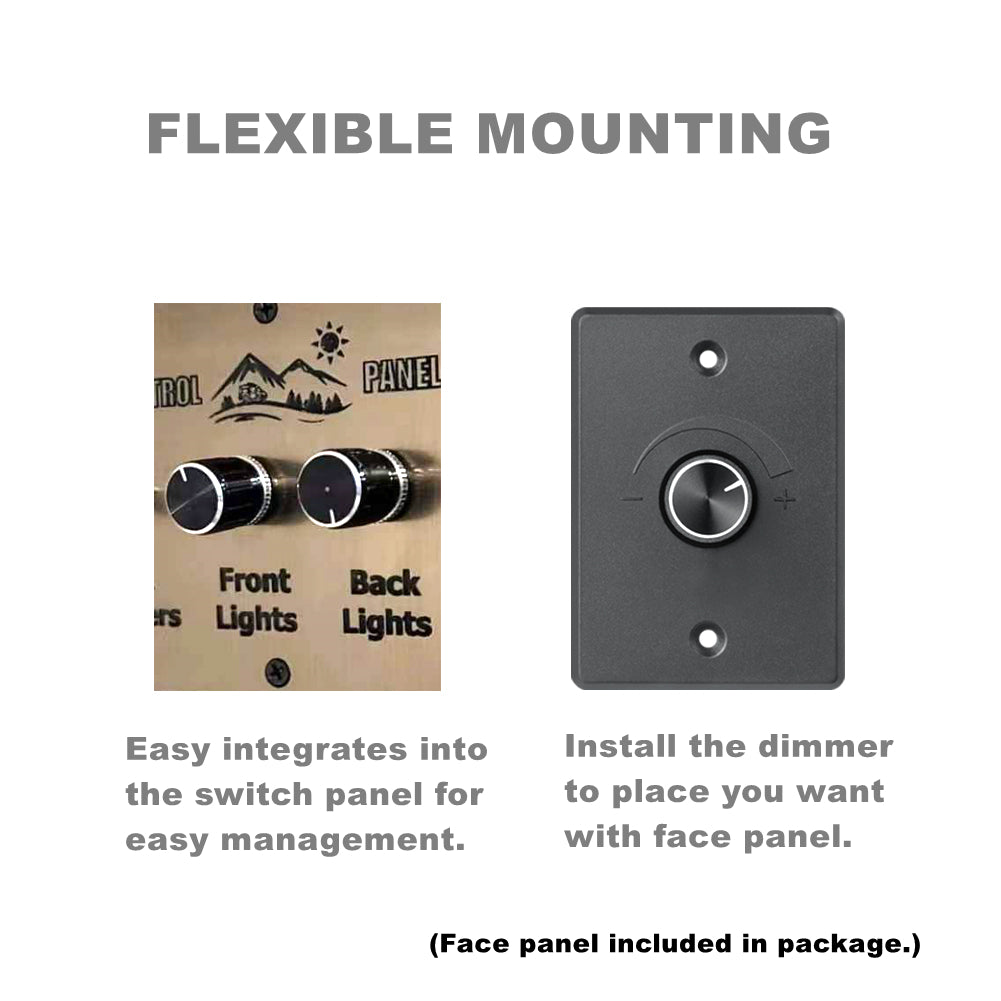

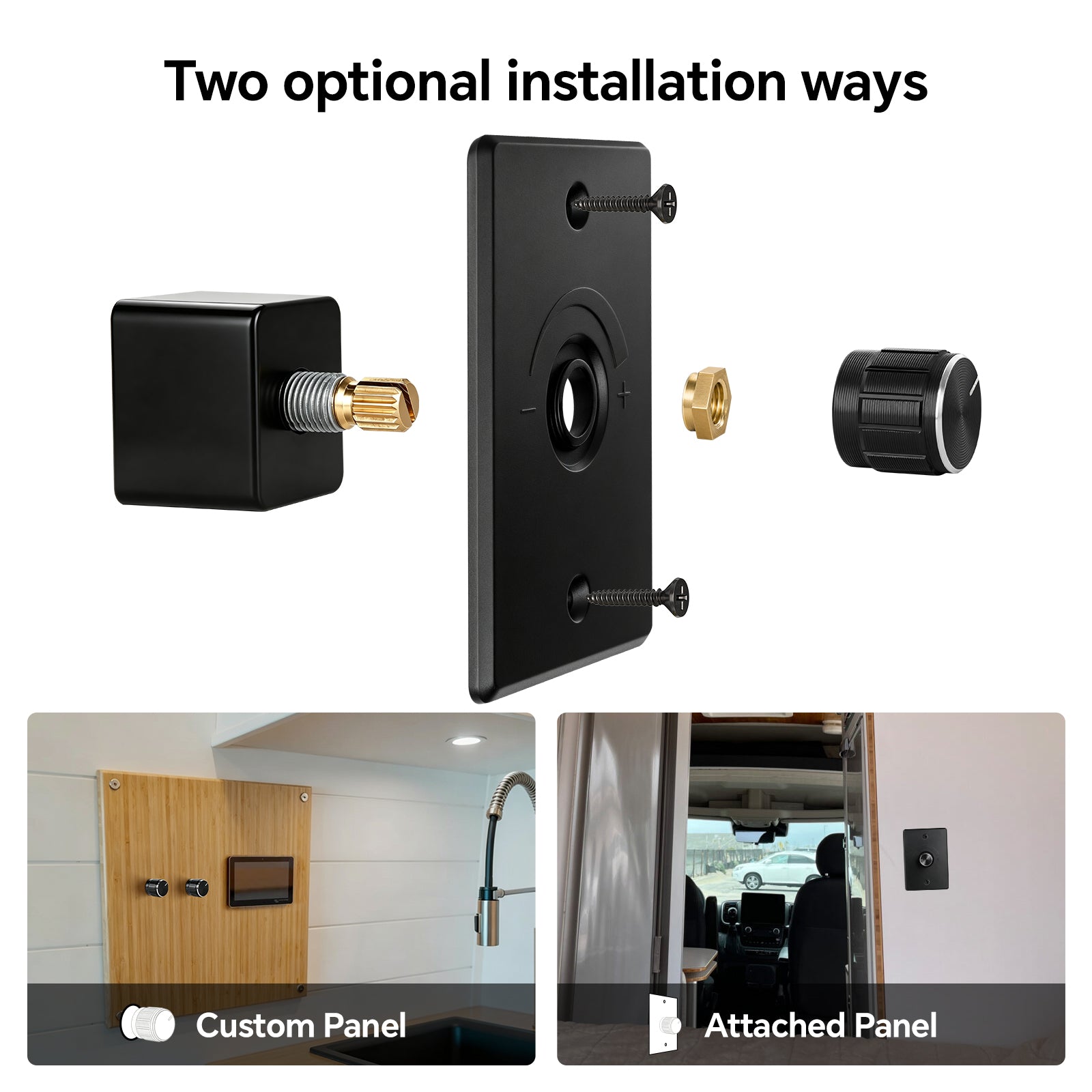

Easy to Install - Compact size easily integrated into custom control panel or install it independently with front panel (included in package)

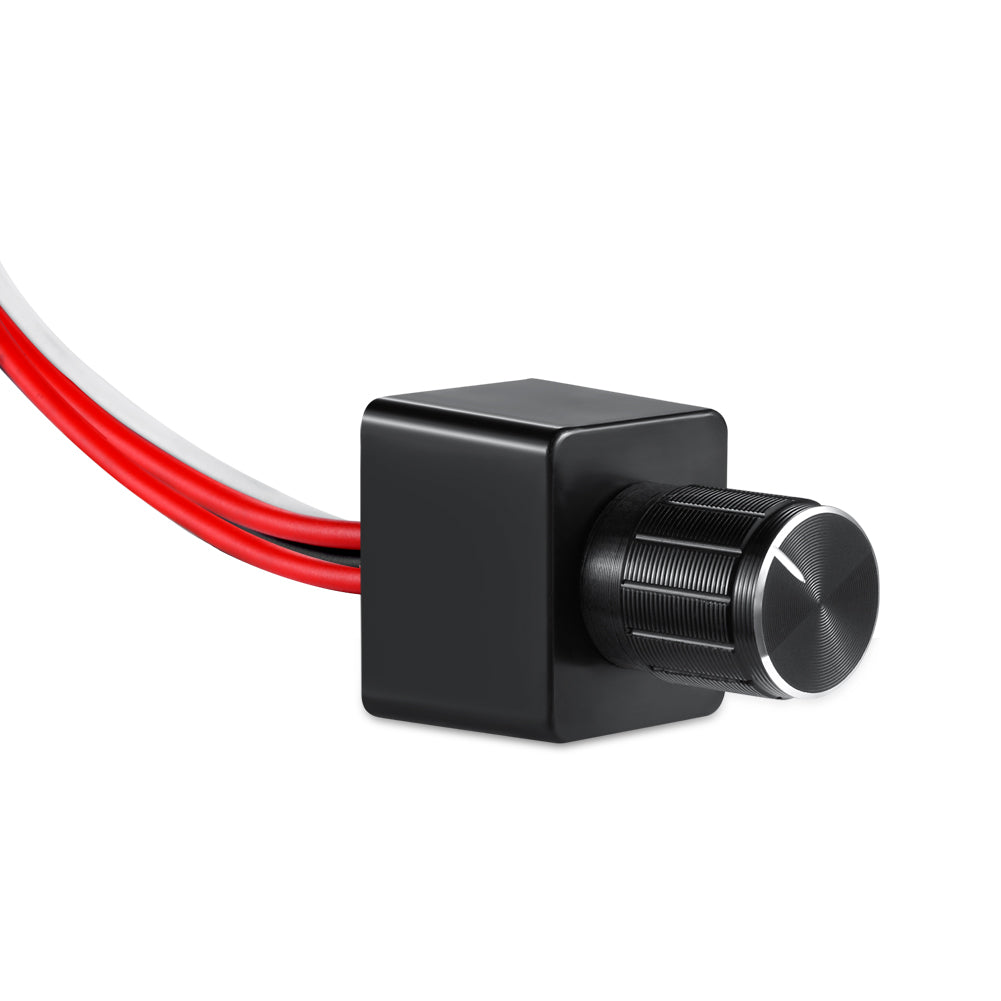

Easy to Use - Rotate the knob to smooth adjust the brightness from full bright to the lowest dim setting, finally a "click" sound of turning off

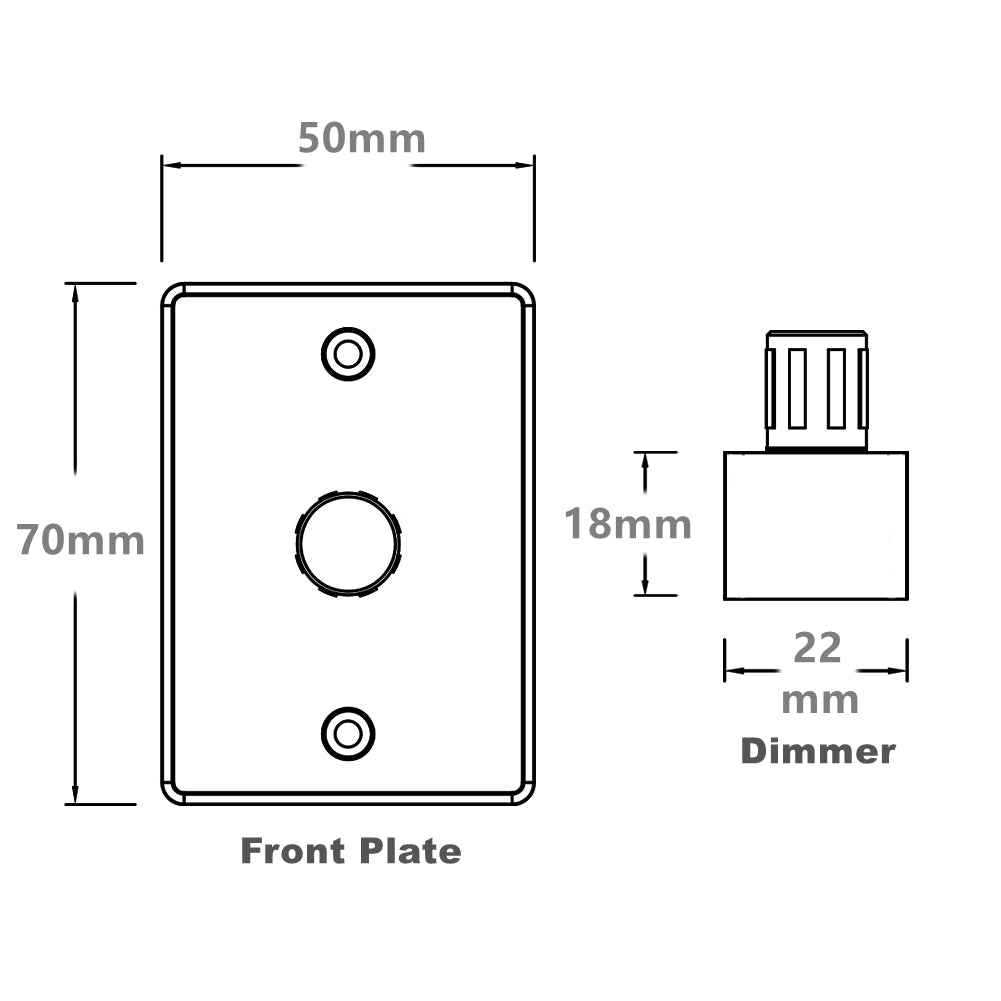

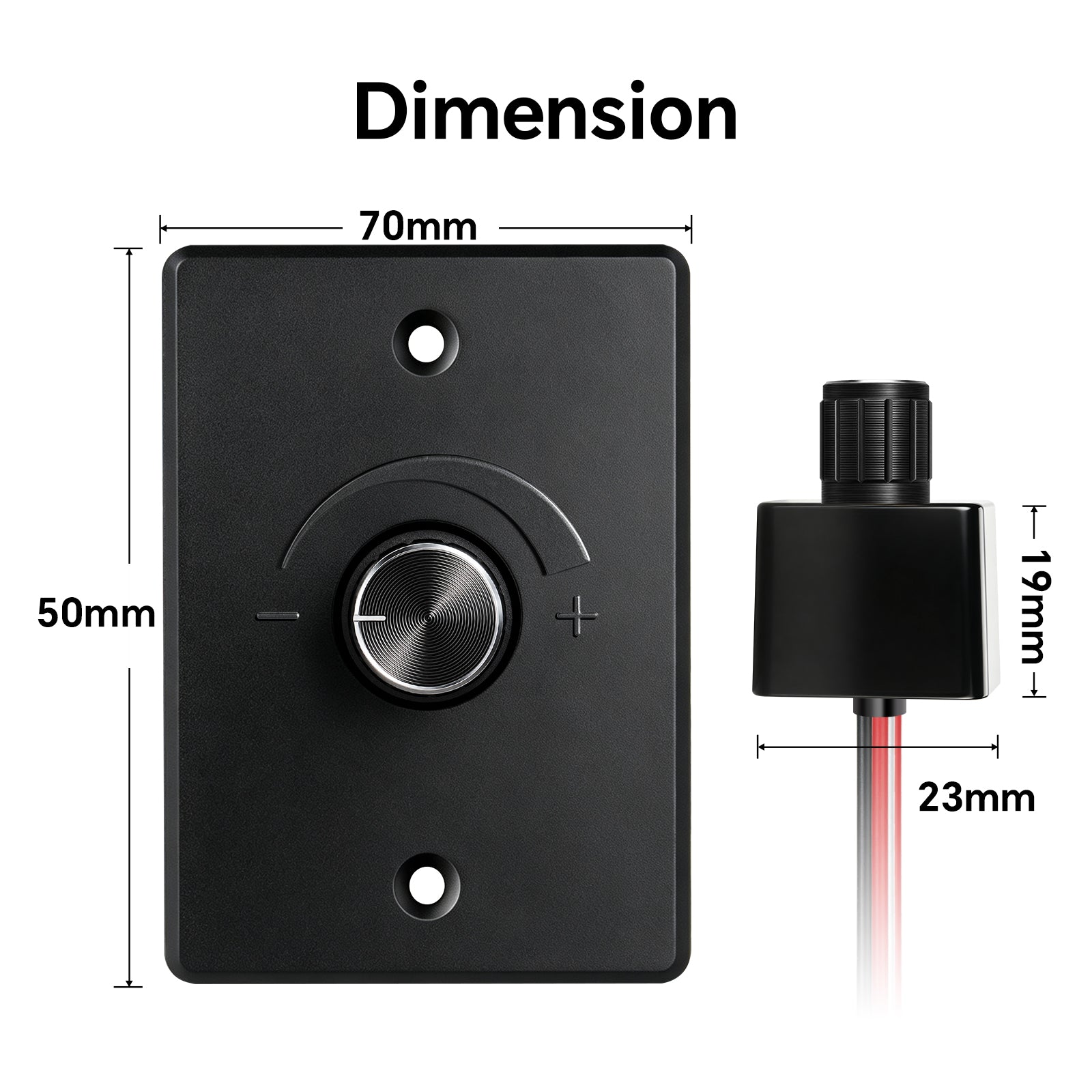

Specifications: Switch Type: Rotary dimming control Rated Current: 6 Amps Working Voltage: DC 12-24V Works with: LED lights, incandescent, halogen Cutout: 23mm x 18mm x 18mm (Depth) Cutout: 15/16" x 13/16" x 3/4" (Depth) Dimension: 23mm (W) x 18mm(L) x 35mm(H) Dimension: 15/16" (W) x 13/16”(L) x 1-1/2”(H) Front Panel Size: 70mm x 50mm x 3mm Front Panel Size: 2” x 2-3/4” x 1/8”
