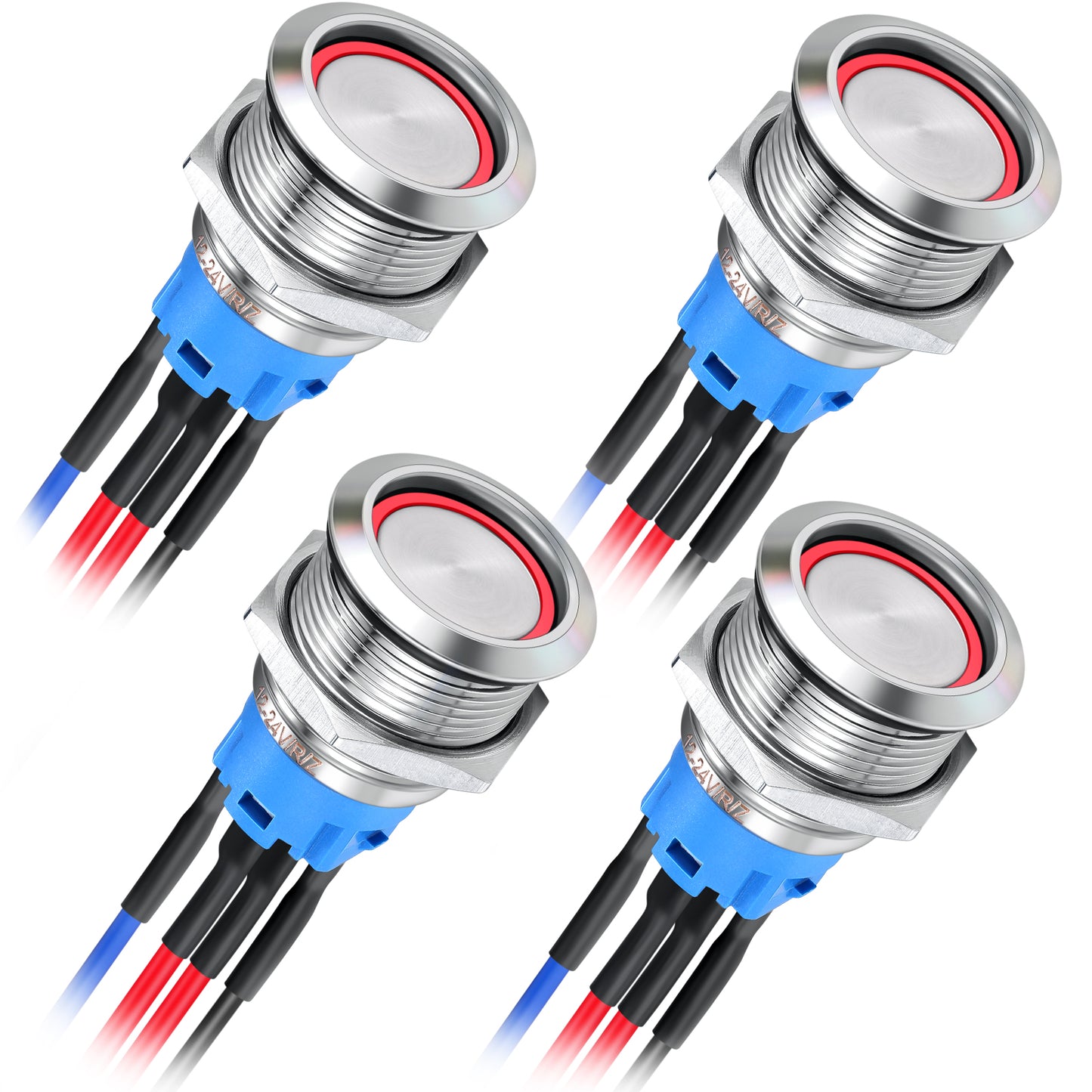

12V ON/OFF Switch 5A Push Button SPST Switch for RV Boat Truck Automotive Lighting, Pre-wired Pigtail 3/4”(19mm) Drill Hole Metal Shell 24V
12V ON/OFF Switch 5A Push Button SPST Switch for RV Boat Truck Automotive Lighting, Pre-wired Pigtail 3/4”(19mm) Drill Hole Metal Shell 24V

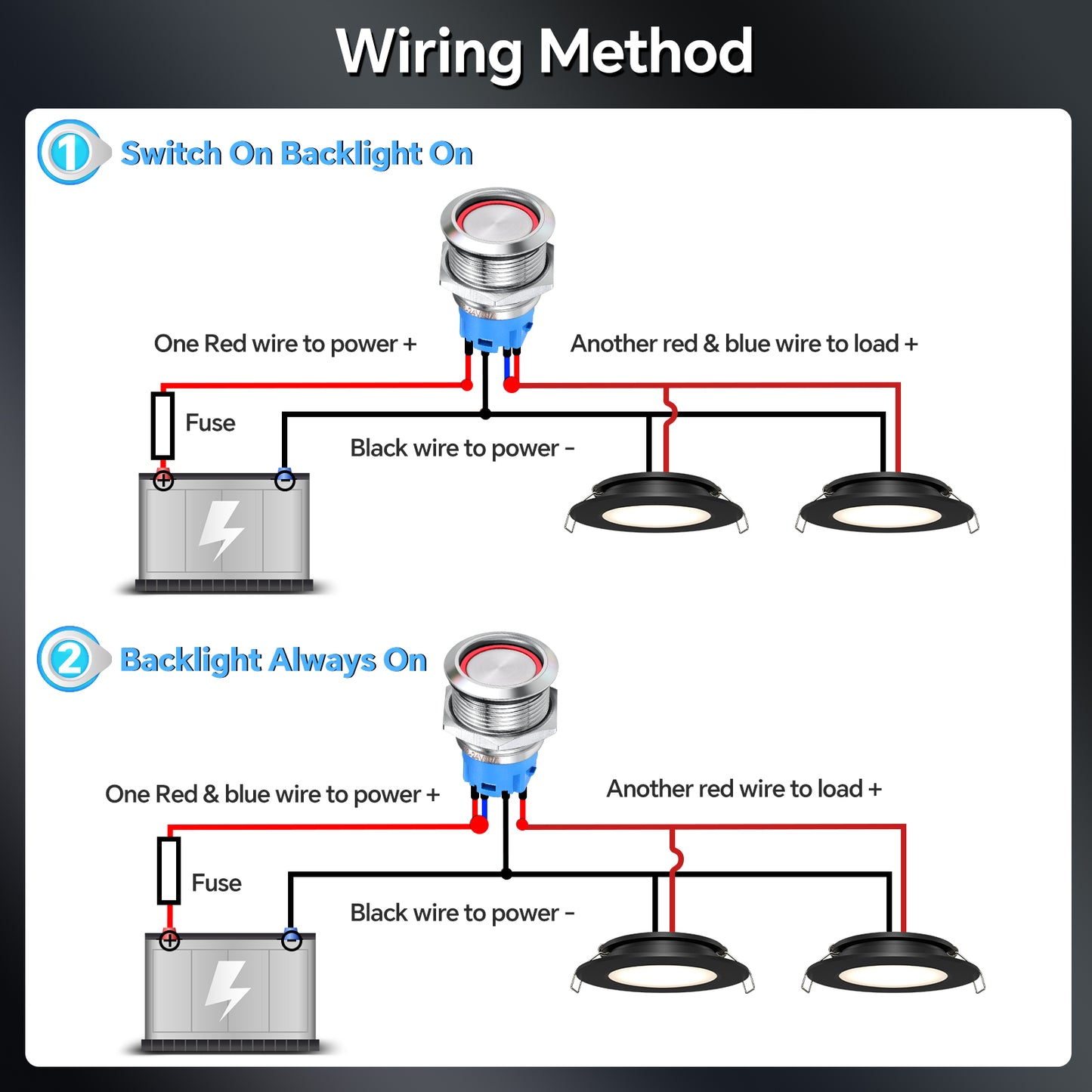

ILLUMINATED ON/OFF SWITCH - This SPST switch features a red illuminated ring light. You can keep back light always on or illuminates when the device is working, it depends on your wiring method and needs

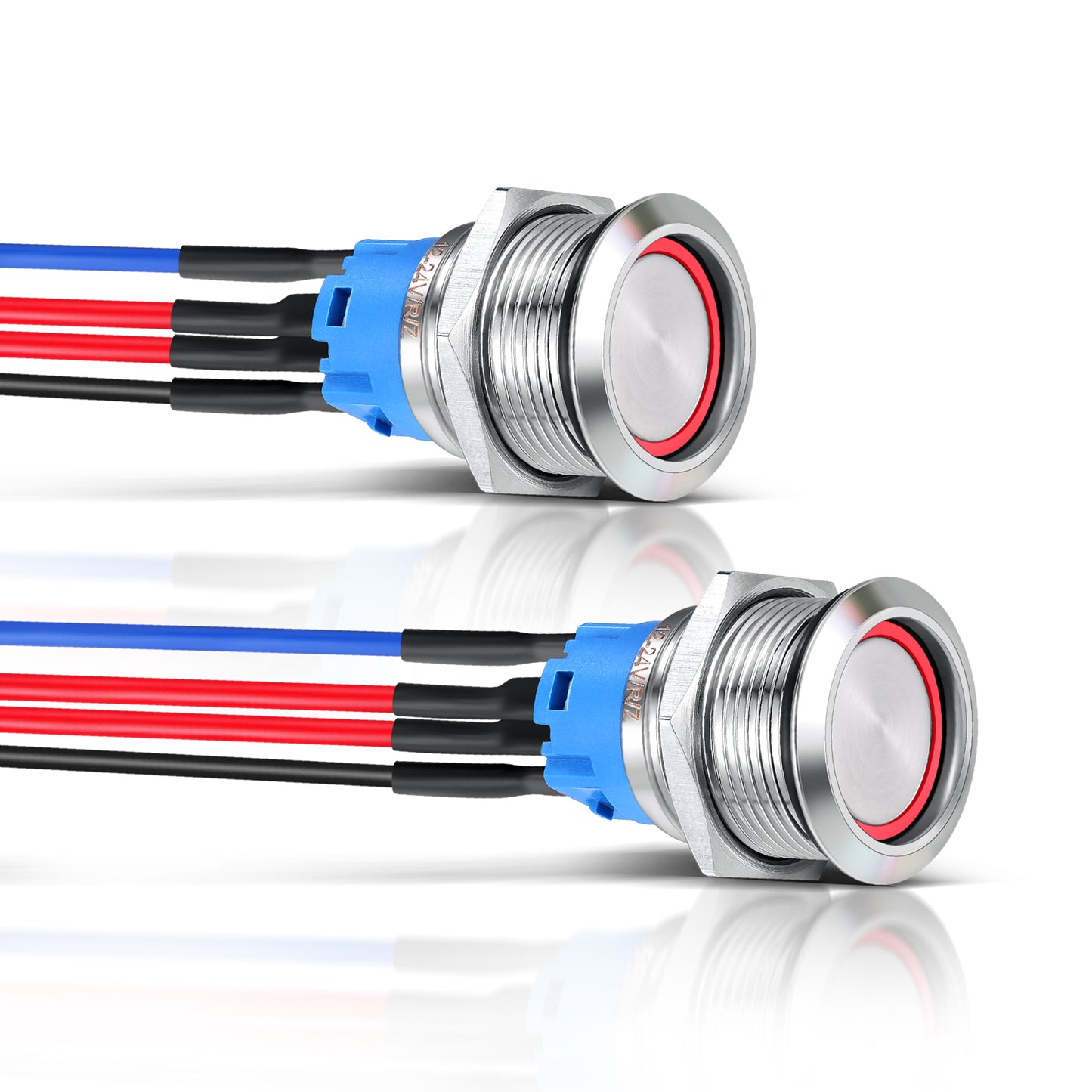

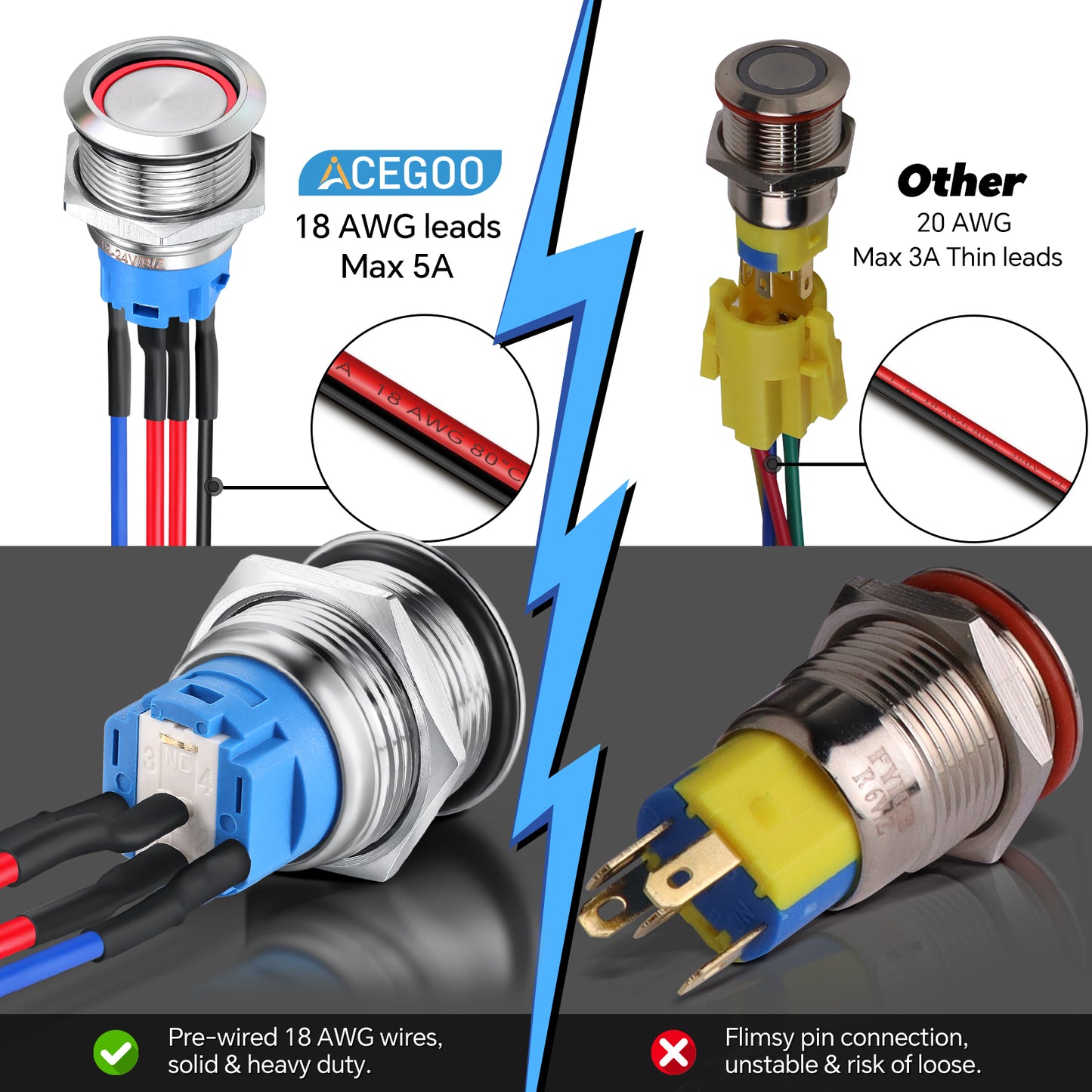

HANDY PRE-SOLDERED LEADS - Each on/off latching switch lead wires are soldered onto the terminals with joints covered neatly by shrink wrap. Saves connection workload and ensures a long-lasting solid connection
ROBUST METAL CONSTRUCTED - Crafted from CNC milled copper. Its rugged design guarantees durability and reliability and endures harsh environments without compromising performance

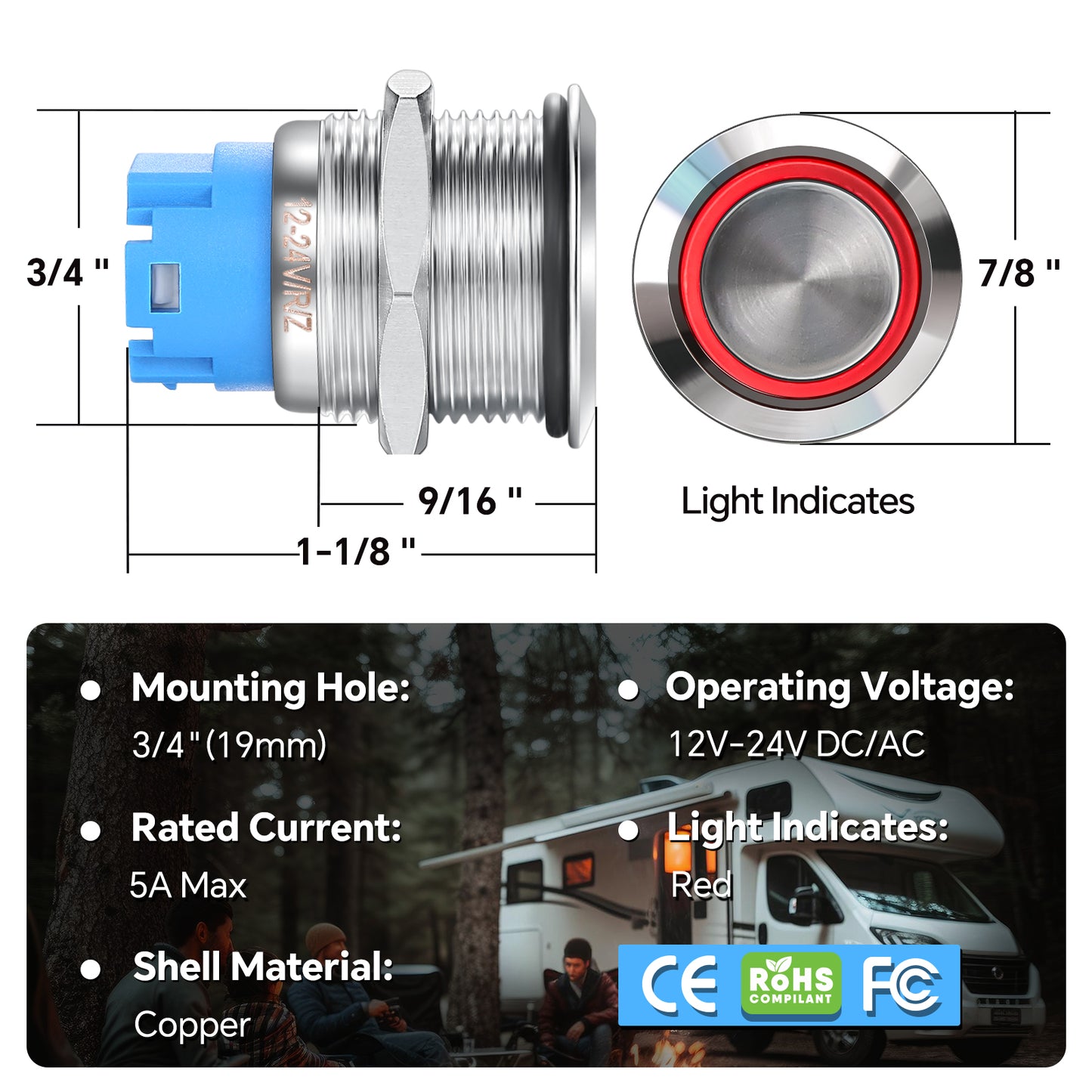

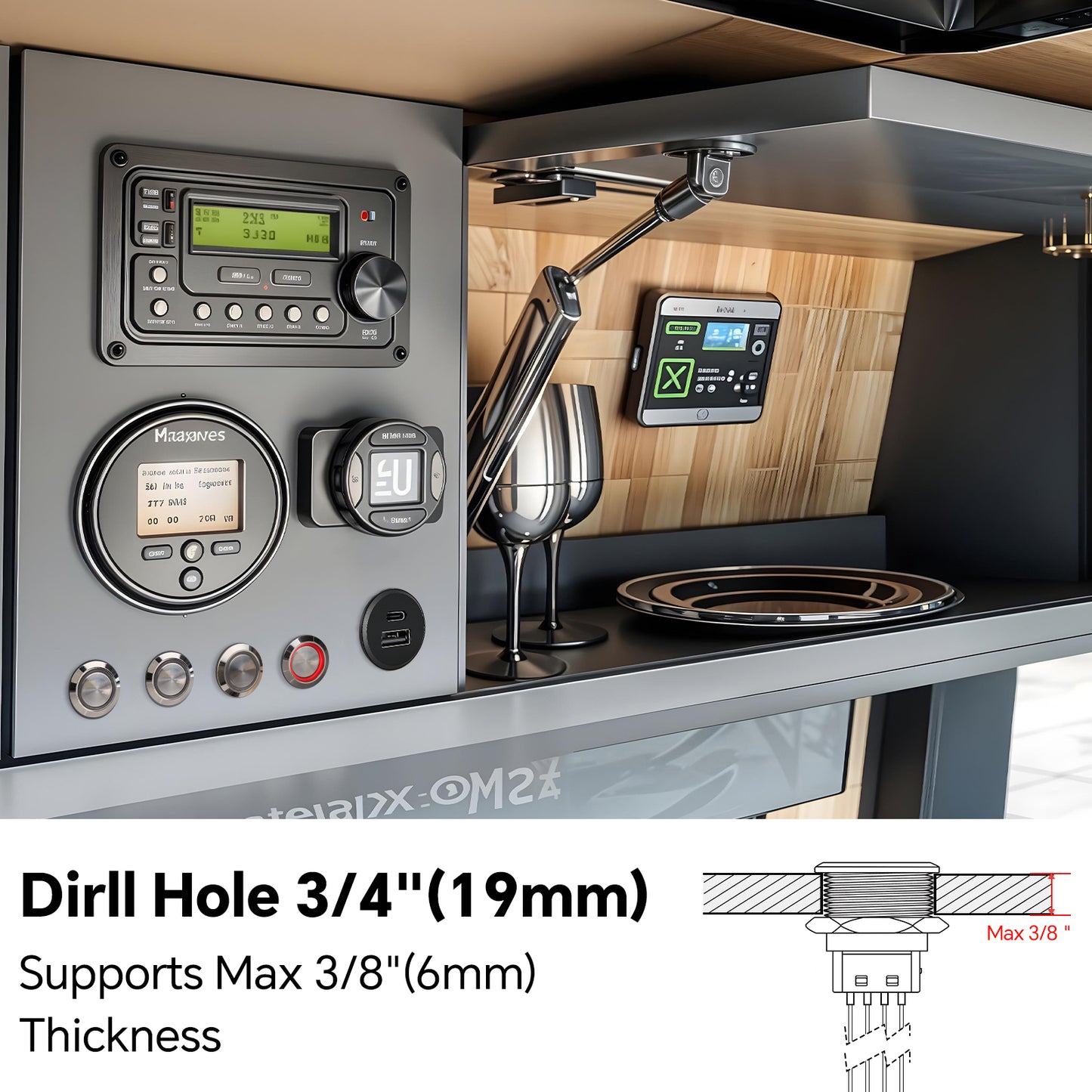

3/4” (19MM) MOUNTING HOLE - The self-locking on/off switch installation is simple, drilling a 1" (19mm) hole on the mounting surface and easily secure the switch with offered nut, very sturdy and shock-proof
VERSATILE APPLICATIONS - Widely used in RV, boats, trucks, motorcycle, automotive, equipment, motor or power starting, lights or circuit on/off control,or any DIY projects requiring robust and reliable switches
Specification:
Max Current: 5A @12V, 2.5A@24V
Work Voltage: 12V-24V DC/AC
Enclosure Material: CNC Milled Copper
Switch Type: 12V ON/OFF Push Button Switch
Mount Type: 19mm Dirll Hole, Nut Locking
Wire Leads: Red Wire AWG 16
Share
SKU:ACE-5A-IR-PBS-S2
