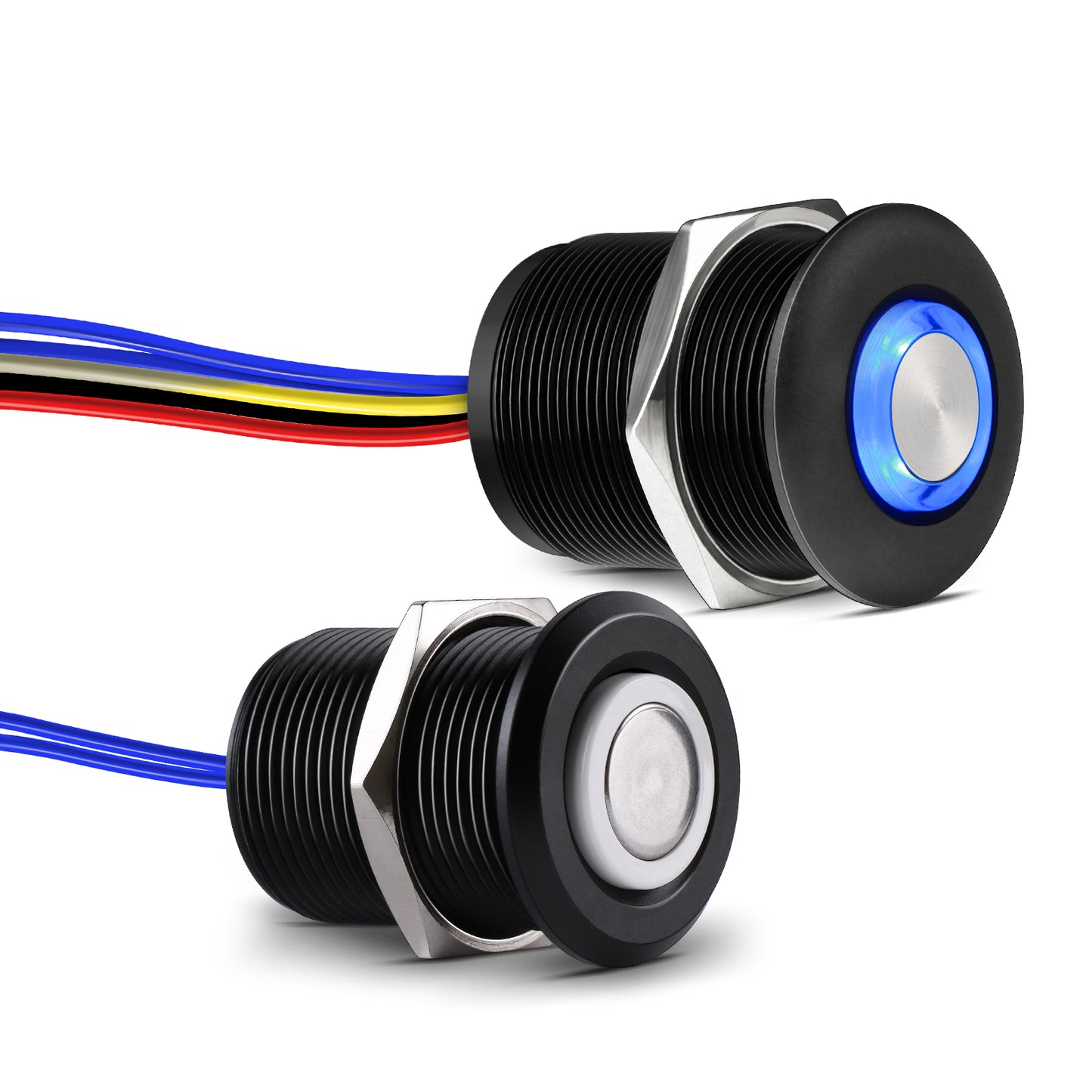

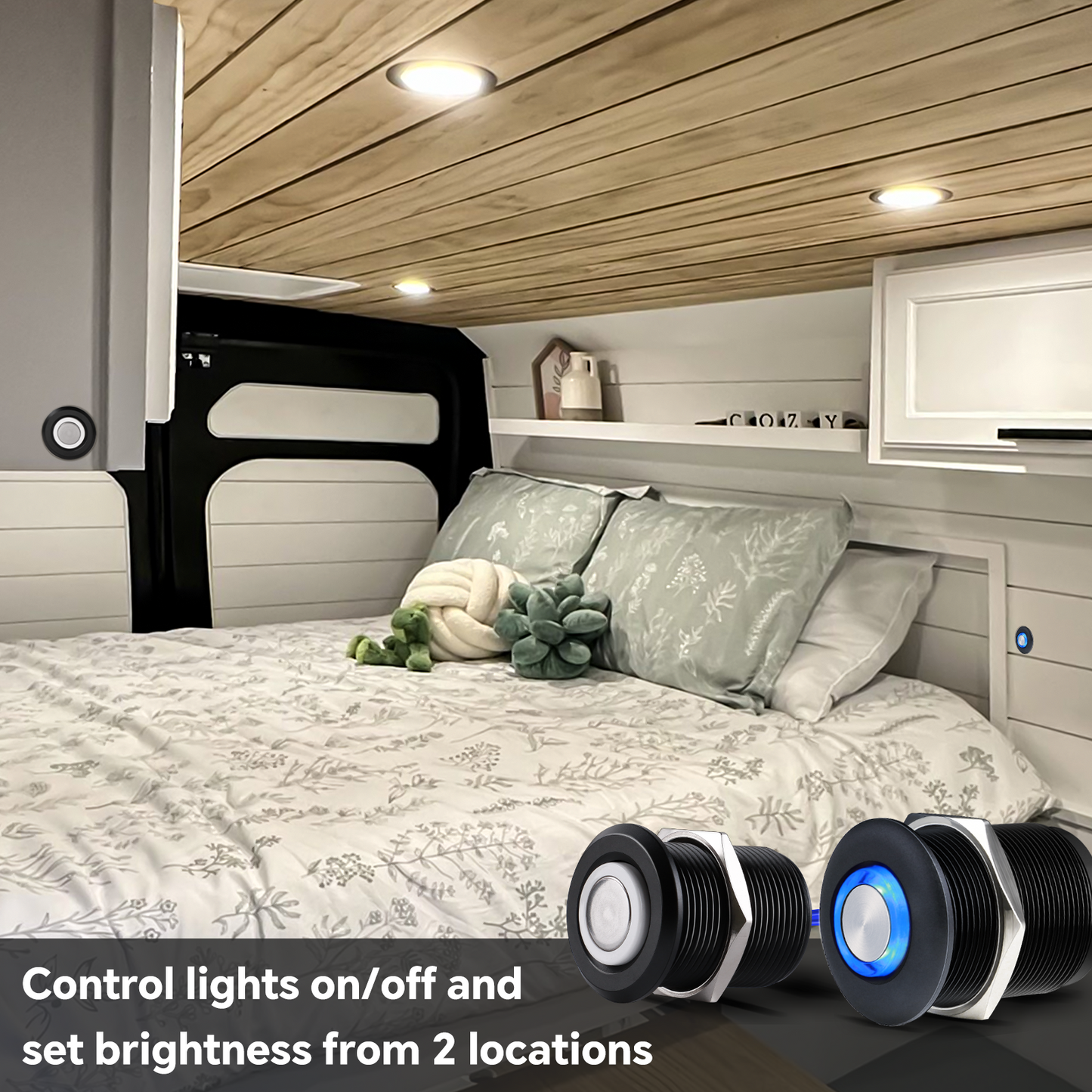

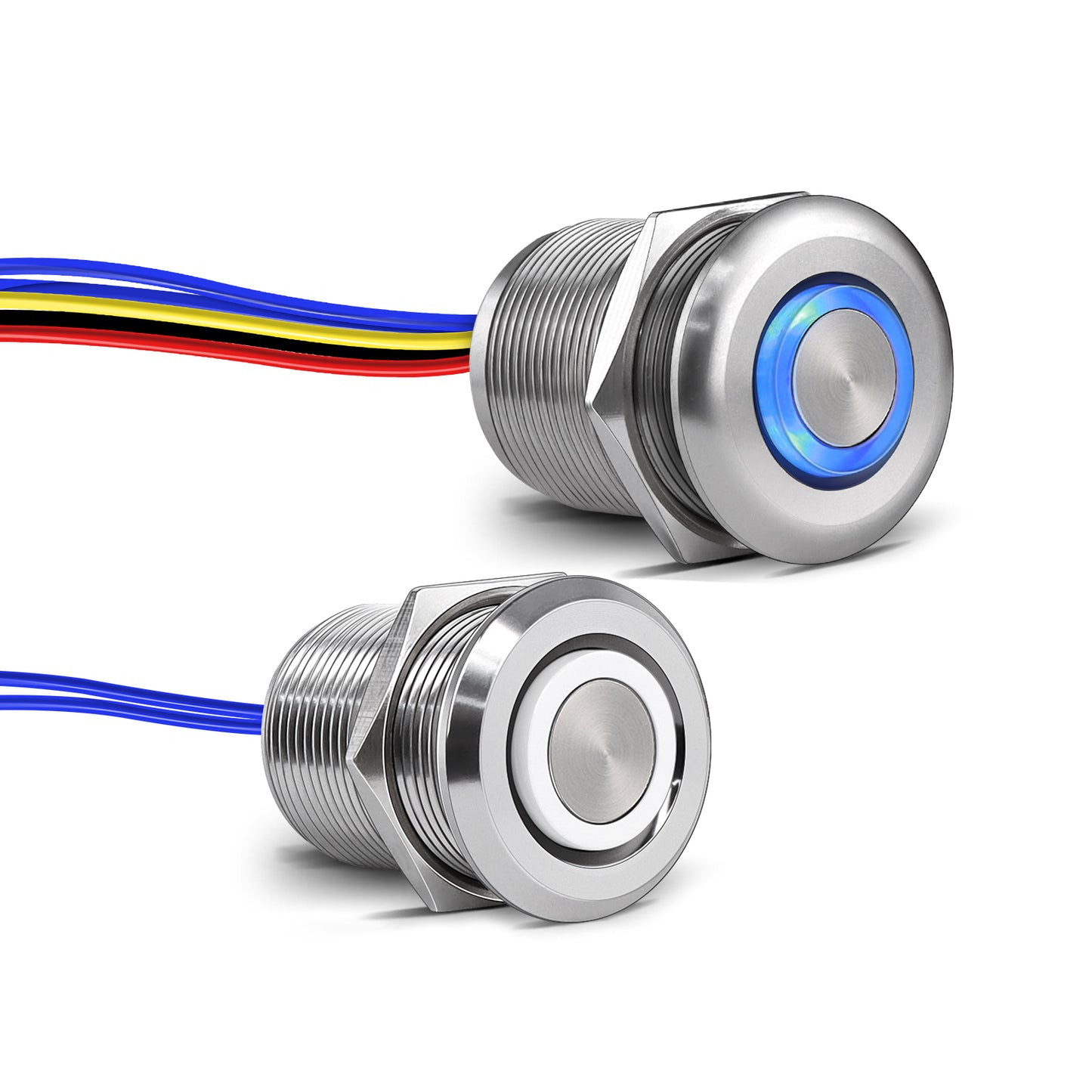

Multi-positions Dimming Control - Easily create multi-positions on/off and dimming control for RV, boat, truck, van interior lighting. All button support on/off and dimming control and brightness memory function. Master dimmer has backlight, slave dimmer w/o backlight
DC12V High-side PWM Dimming - Dims up to 72 watts of incandescent, halogen, LED lighting (Rated 6A@12VDC, 3A@24VDC), features no hum no buzz flicker-free 5%-100% PWM stepless dimming control. Works with halogen, incandescent, LED strip light and non-regulated LED light fixtures
All-aluminum & High Performance - The dimmer enclosure was manufactured from CNC milled aluminum with excellent heat dissipation and anti-corrosion, inbuilt over-current over-voltage and electrical surge protection, keep high performance and long-lasting

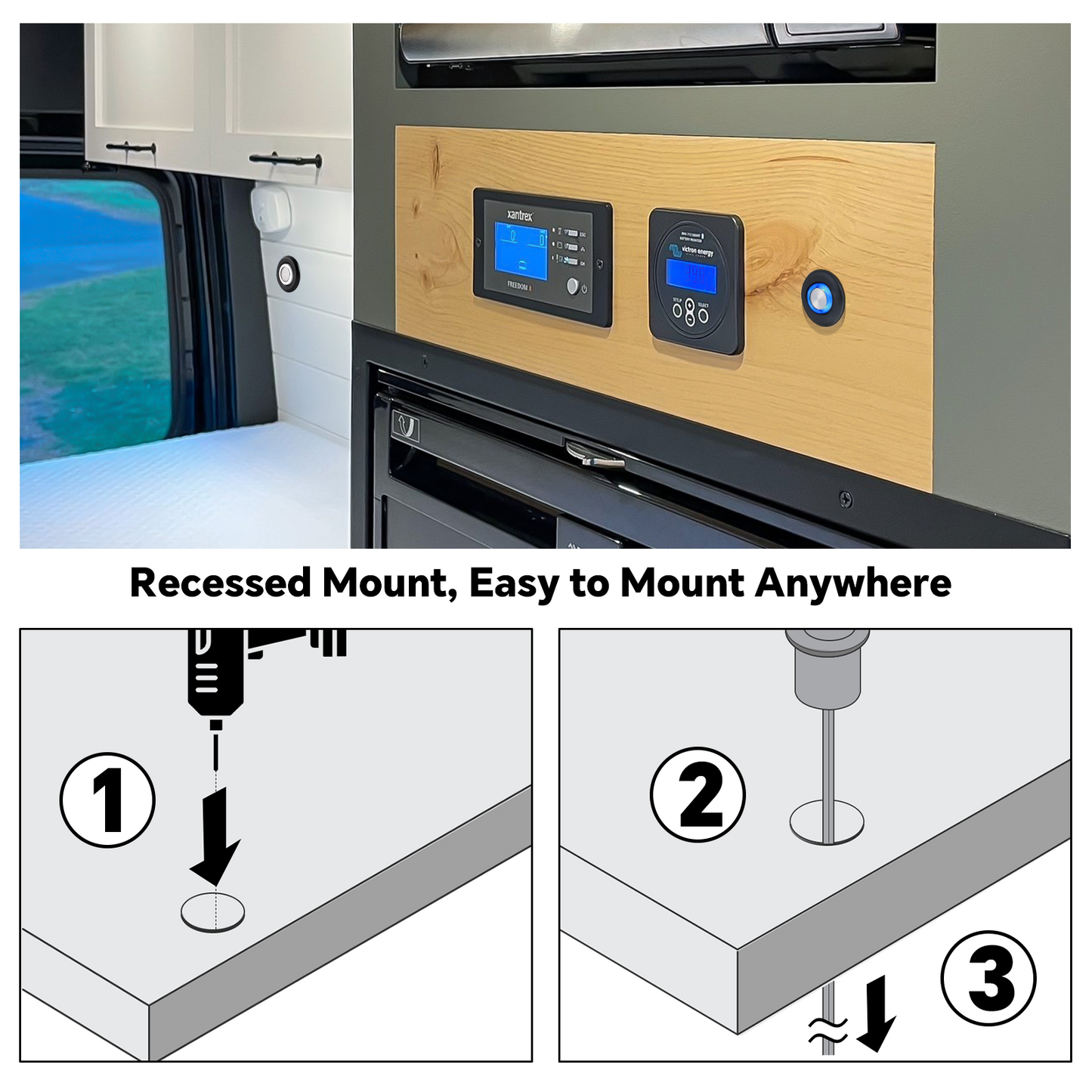

Recessed Mount, Sleek Clean Look - Drill a mounting hole (Master dimmer 7/8” hole, slave dimmer 3/4” hole) on custom switch panel, OEM dashboard or cabinet for recessed mounting, dimmer secured by screw nut, providing modern clean look after installation
Compact Design and Versatile - Compact size easily fits in small spaces where other dimmers can’t. Perfect for RVs travel trailers boats camper van motorhome trucks, 12 volt residential or commercial lighting or anywhere 12-24VDC power is present
Parameters:
Enclosure Material: CNC milled aluminum
Faceplate: Full aluminum
Operation Voltage: DC12V, DC24V
Output Current: Max 6A@12VDC, Max 3A@24V

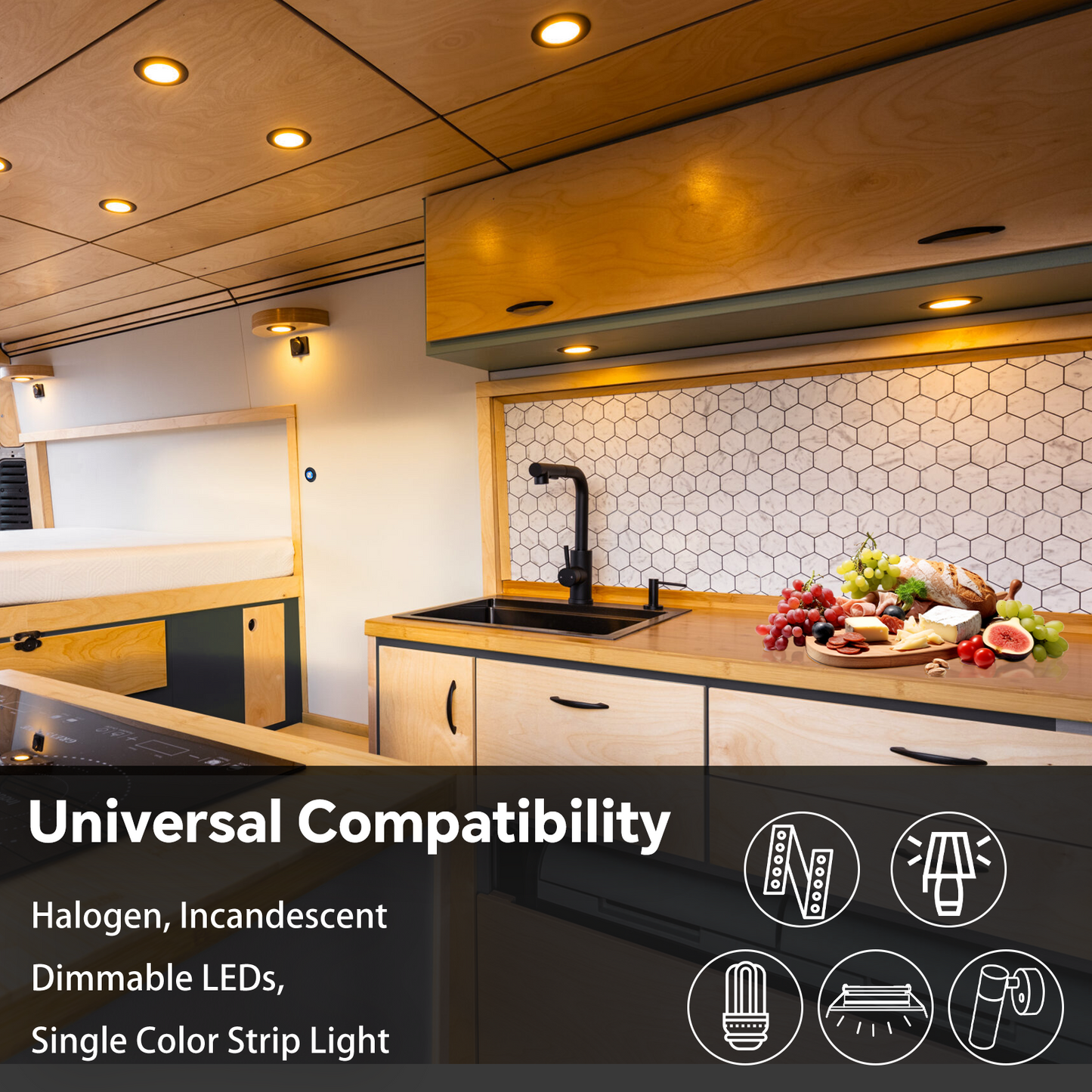

Compatible: incandescent, halogen, LED strip light or dimmable LEDs
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Save the last brightness and on/off setting
Dimmer Type: Push button, both support on/off/dimming control

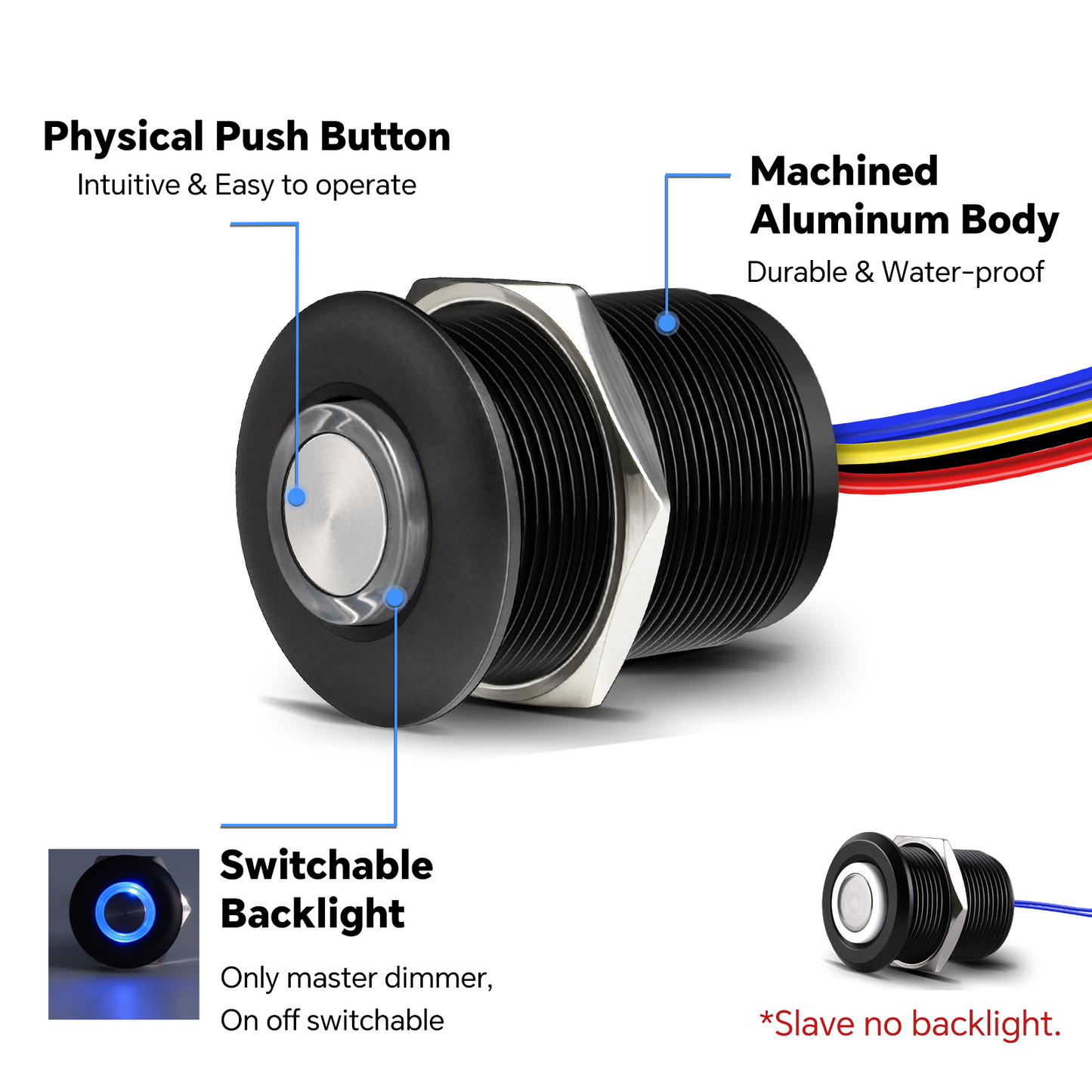

Backlight: Only master dimmer, on off switchable
Finish Color: Black

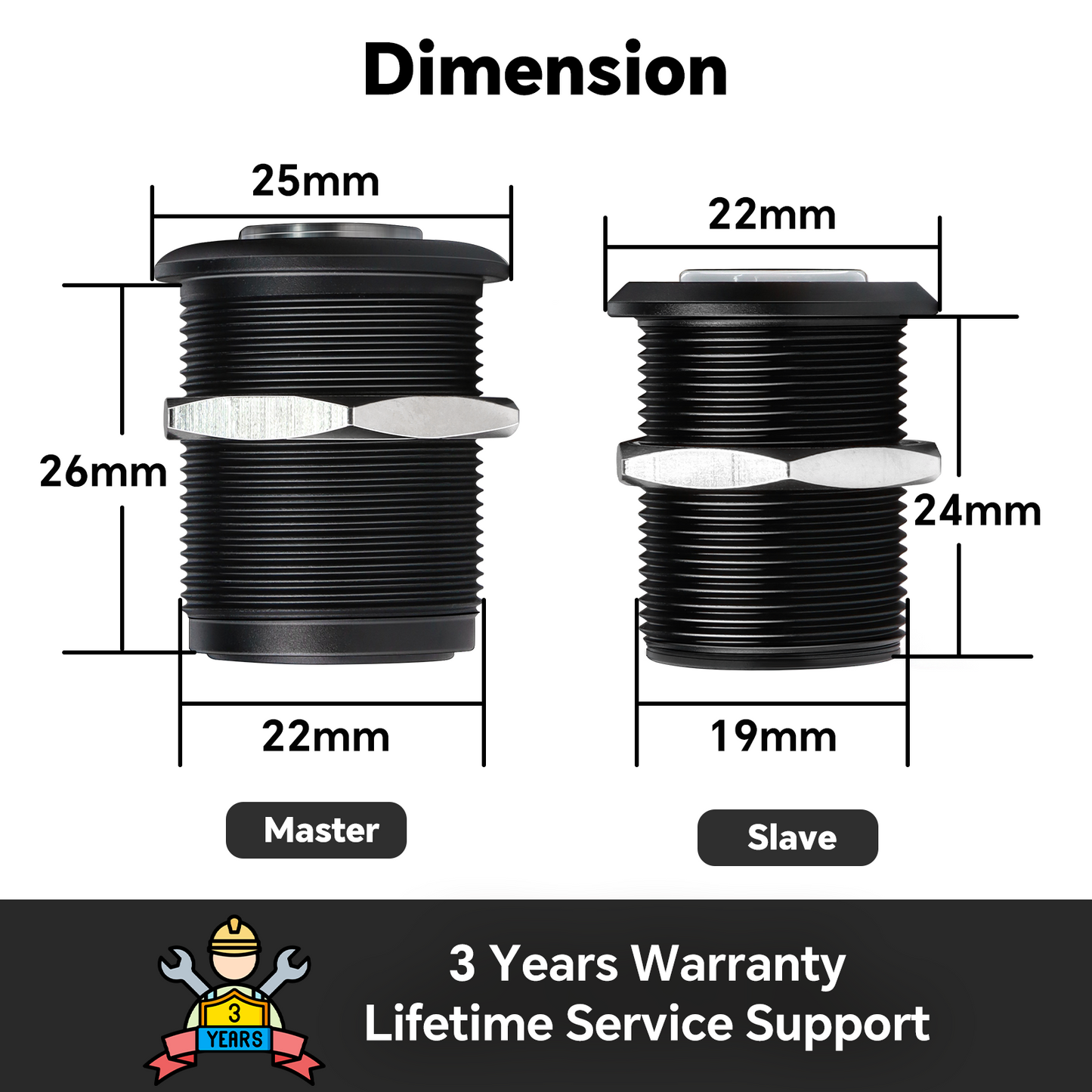

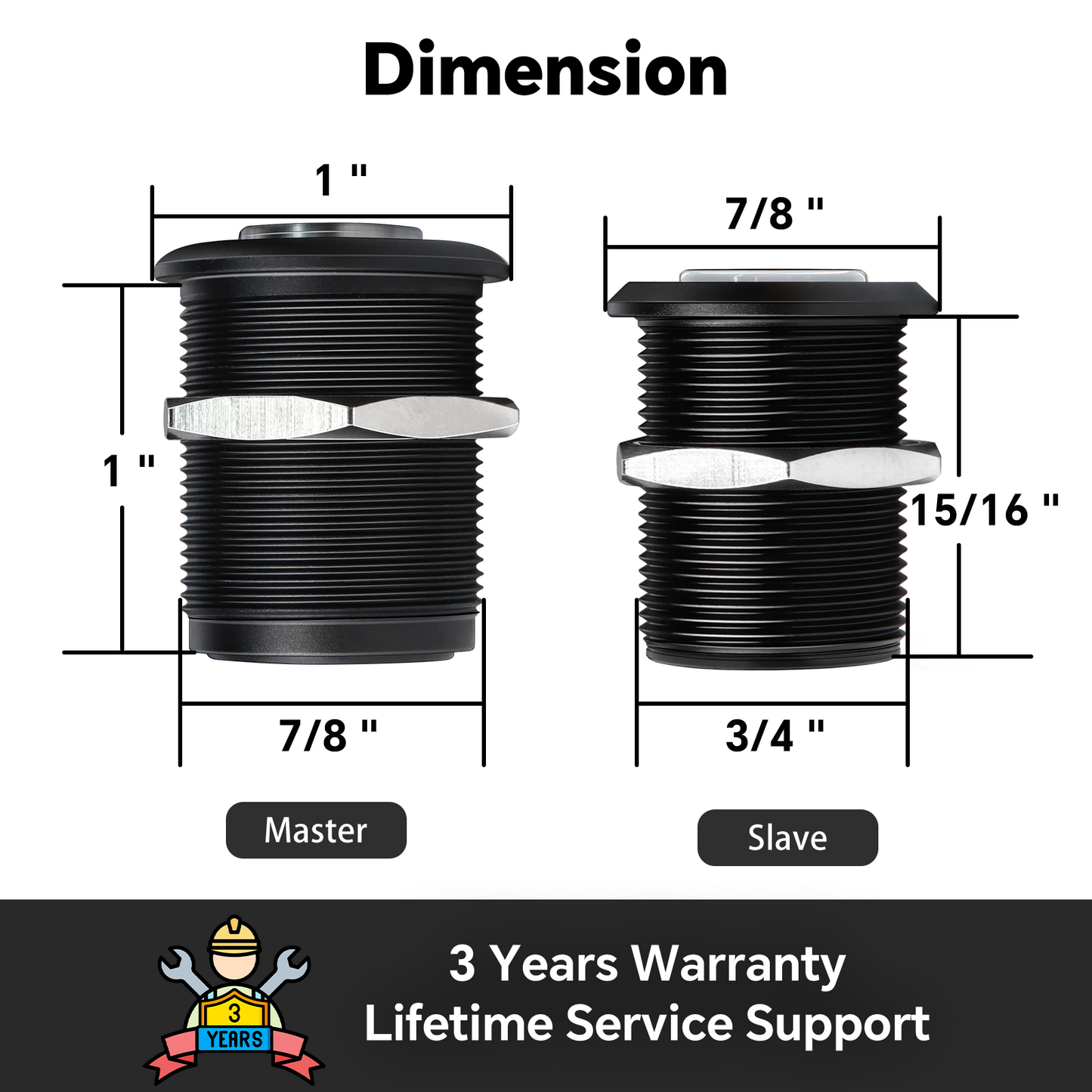

Master Button Size: 1” x 1” (25mm x 25 mm)
Slave Button Size: 1 x 7/8” (25mm x 22 mm)
Installation Depth: 1” (25mm)
Drill Hole: Master dimmer 7/8” (22mm), Slave dimmer 3/4”(19mm)
IP rating: IP 64
