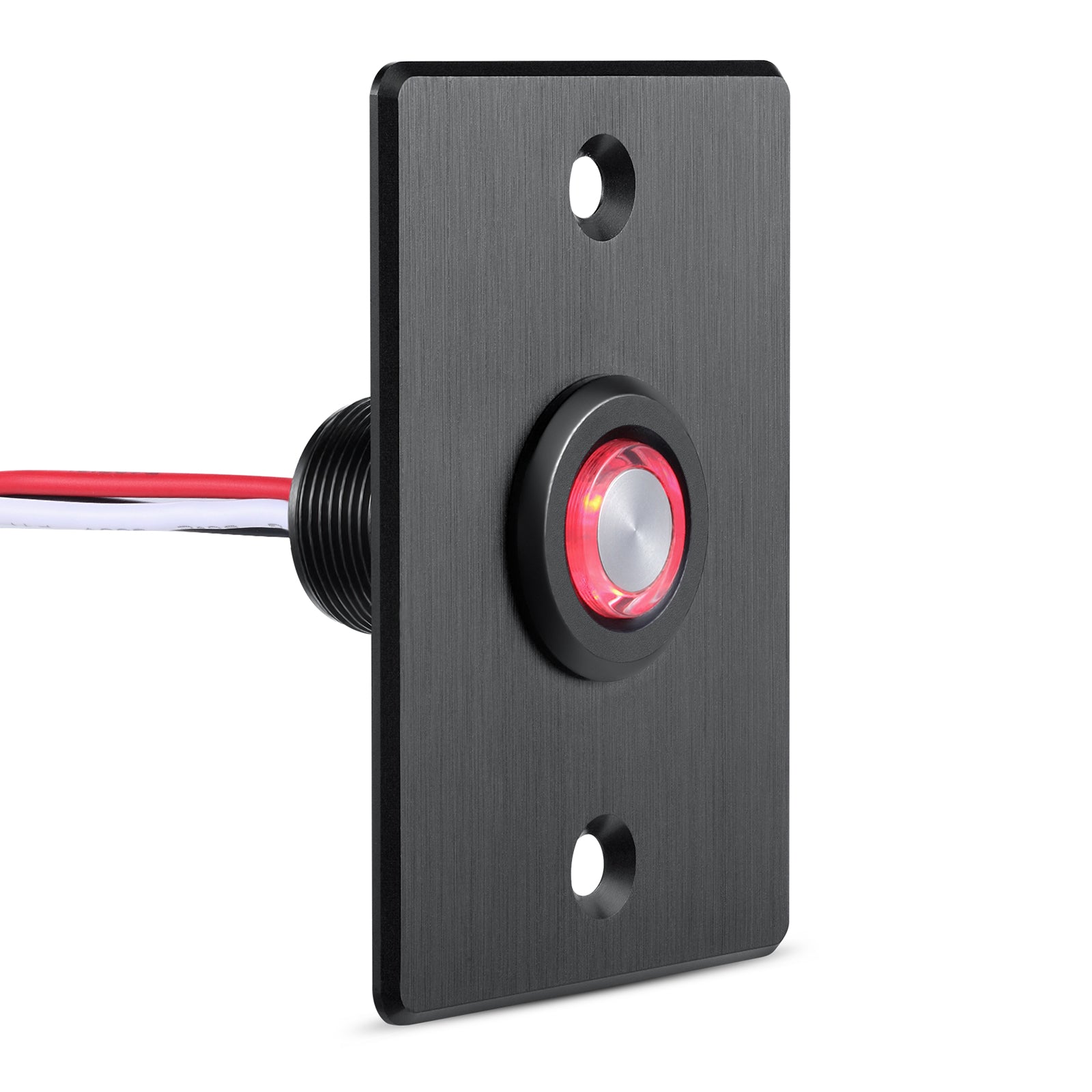

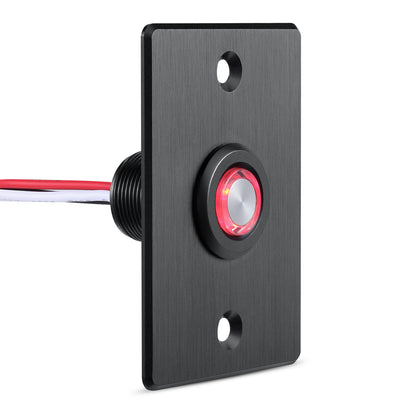

12V PWM Dimmer Switch Low Side, Push Button Dimmer for RV Boat Lighting & Led Strip Light, 6A Full Aluminum with Red Ring Light
12V PWM Dimmer Switch Low Side, Push Button Dimmer for RV Boat Lighting & Led Strip Light, 6A Full Aluminum with Red Ring Light
Couldn't load pickup availability
Durable Full Aluminum Material - The push button dimmer is manufactured from machined aluminum and additional aluminum face plate with texture finish

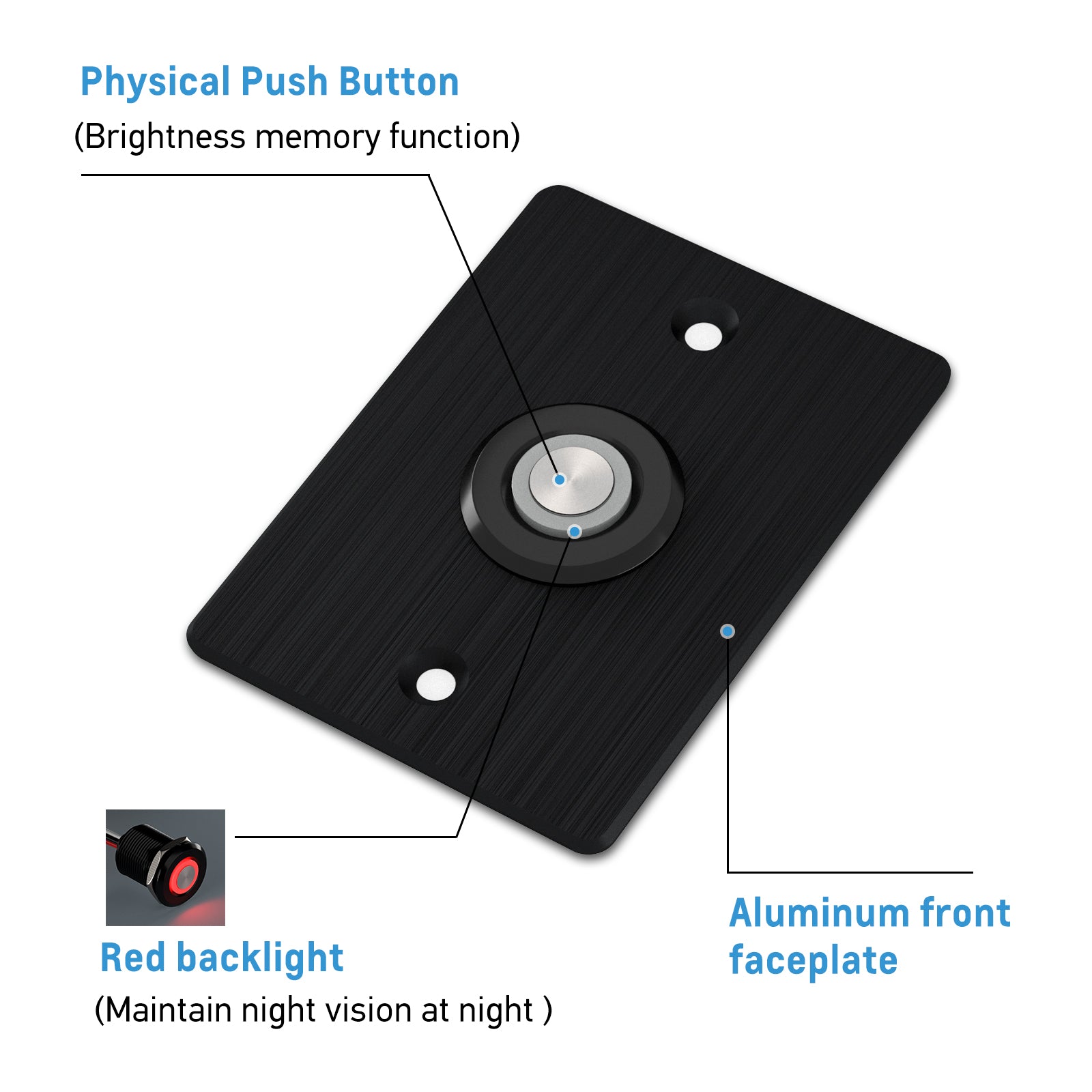

Reliable Physical Push Button - This is not capacitive touch switch, but mechanical push button. It is intuitive to operate, no malfunction, very reliable and stable
Smooth Dimming & Brightness Memory - Features 5% - 100% stepless dimming range, light brightness will keep the same as last time setting when turn on next time
Red Backlight On Off Switchable - The red ring light preserves night vision in the night. You can freely switch the red backlight on or off according to personal preference

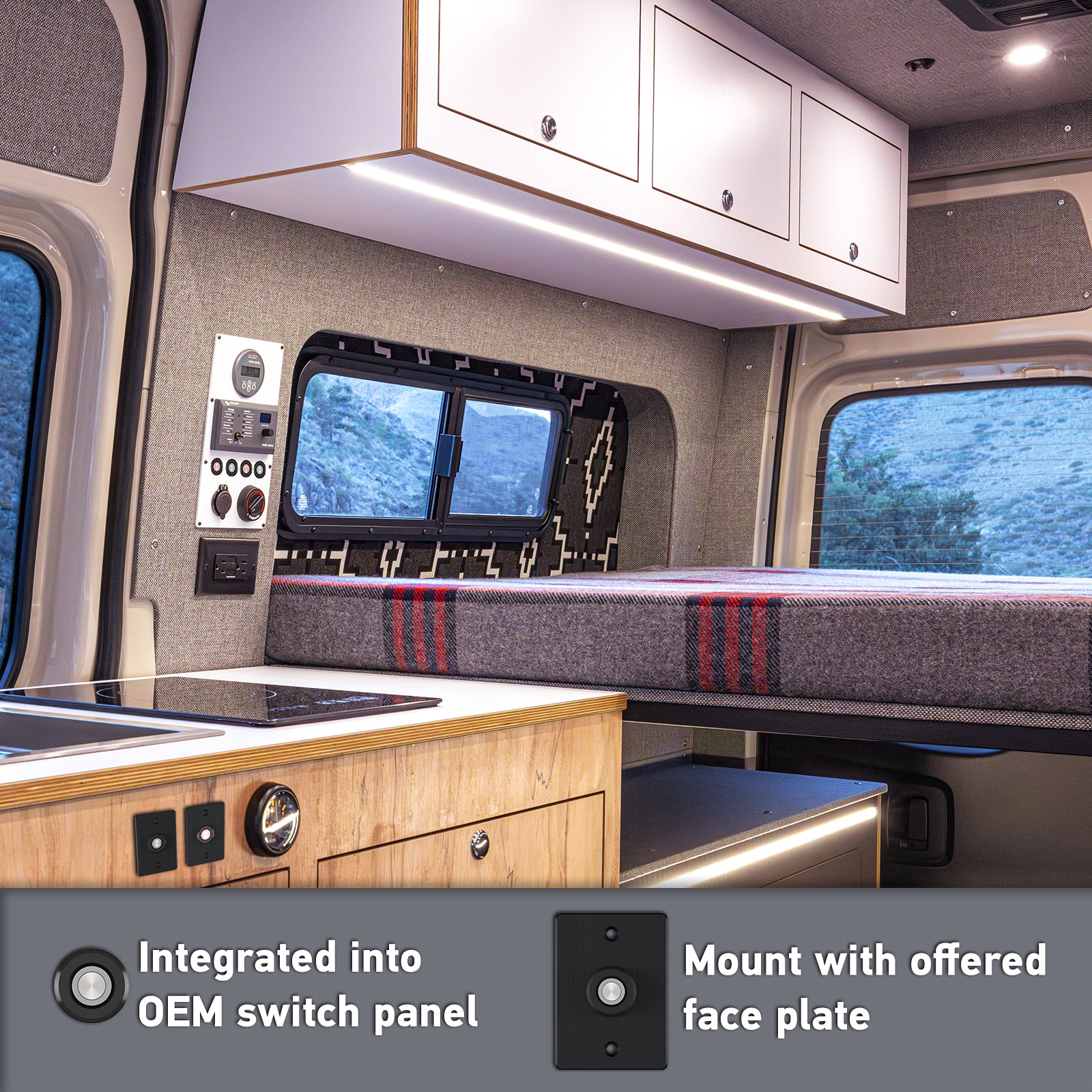

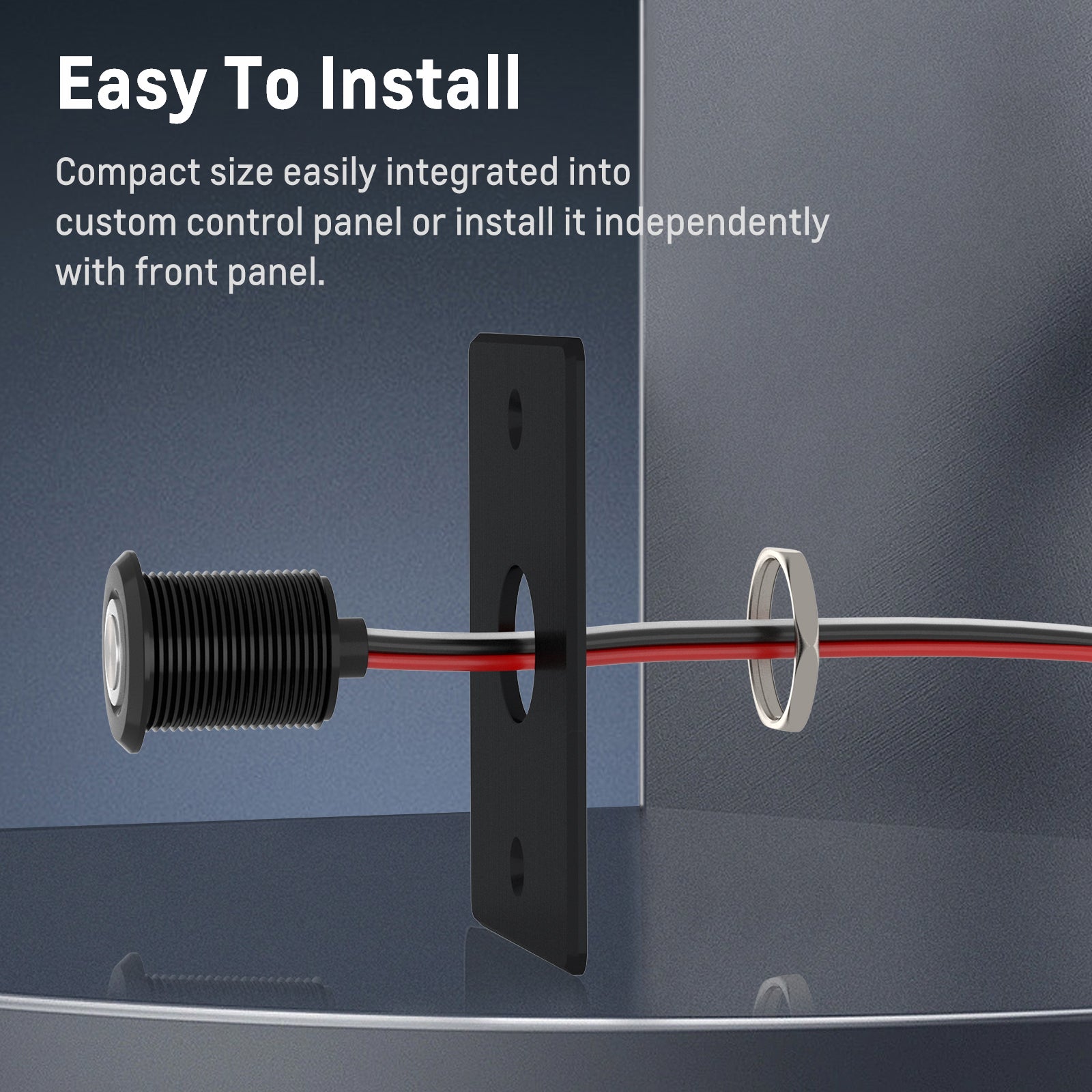

Flush Mounting, Clean Look - Drill a 19mm hole, dimmer was recessed into mounting surface and secured sturdy by screw nut in back, clean and modern looking
Specification:
Enclosure Material: Full aluminum
Front Plate: Full aluminum
Operation Voltage: DC12V or DC24V
Output Current: Max 6 Amps
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Saves the last brightness setting
Red Backlight: On off switchable
Finish Color: Black / Silver

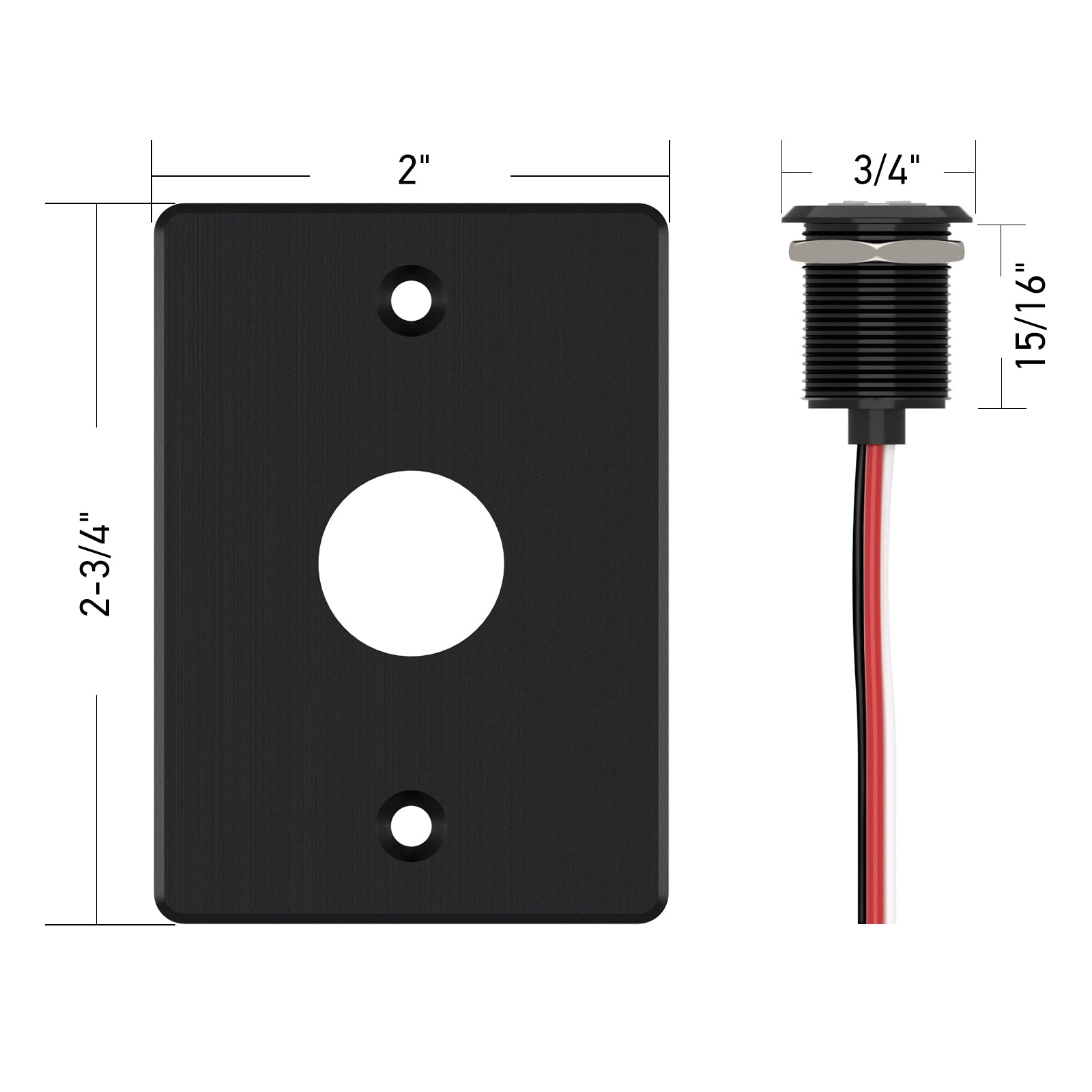

Dimmer Size: 22mm x 25 mm
Front Plate Size: 70mm x 50 mm
Installation Depth: 25mm
Drill Hole Diameter: 19mm
IP rating: IP 64
Application: Indoor use
